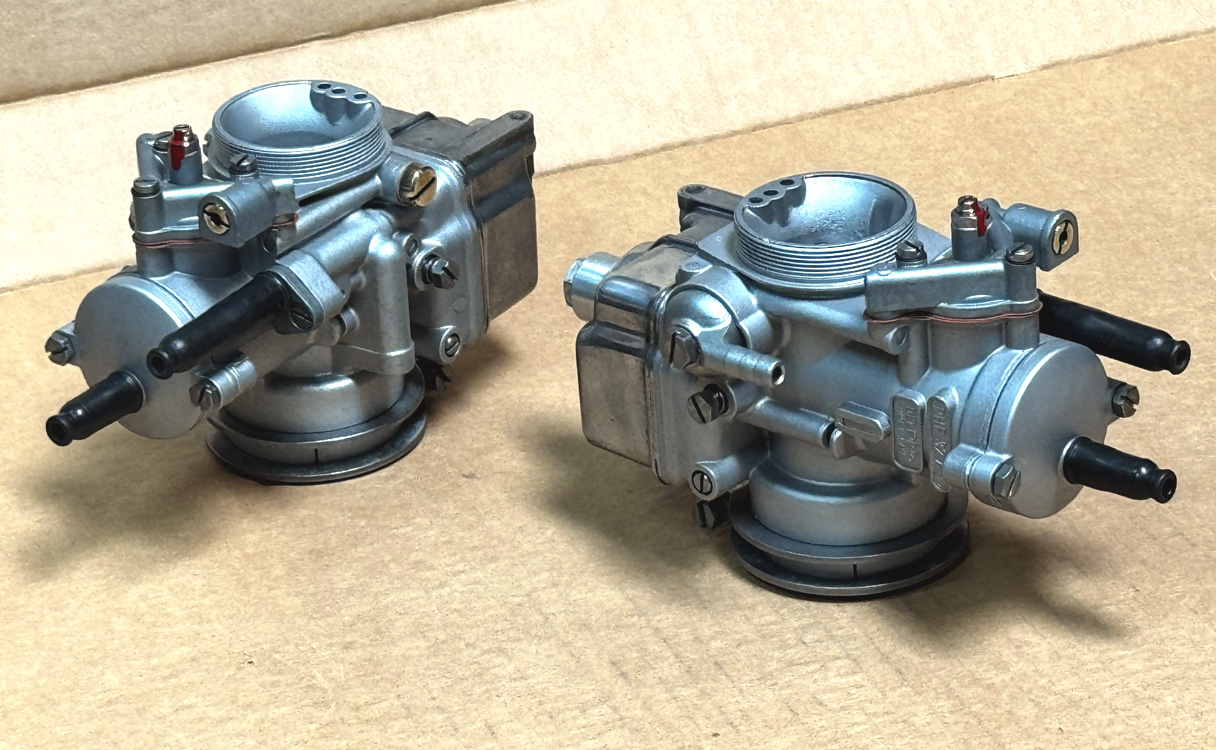

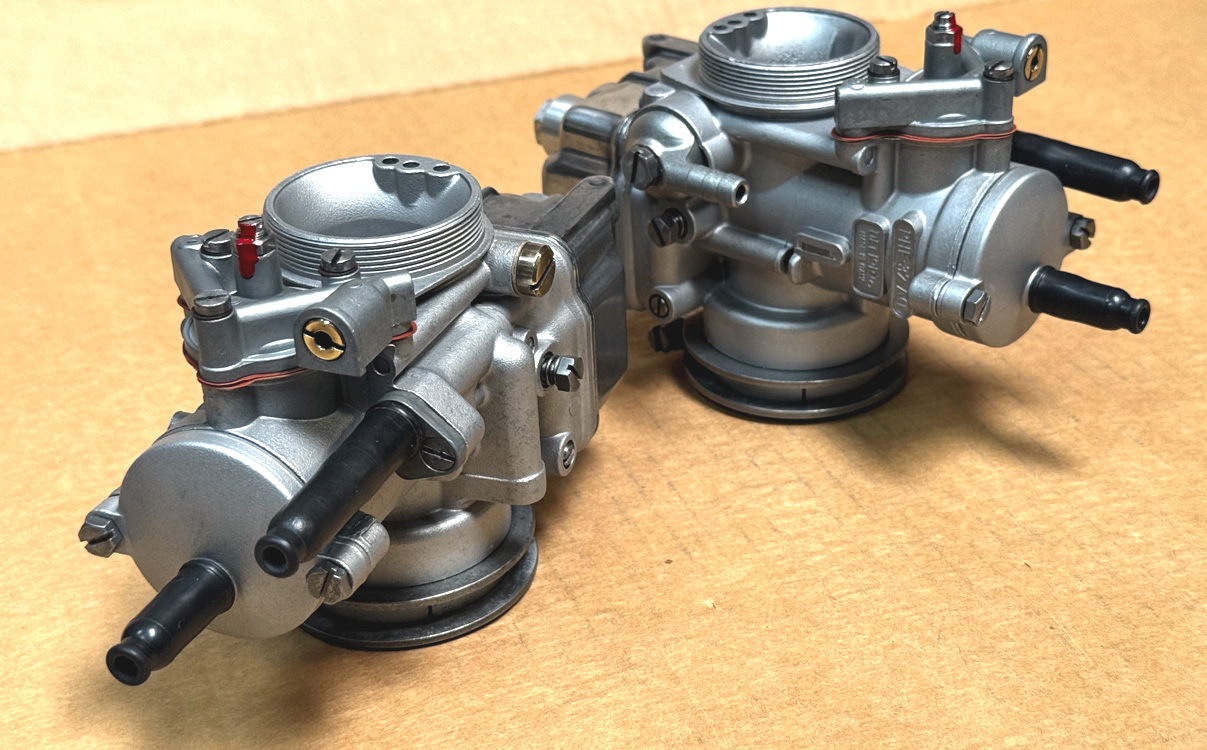

This is a freshly rebuilt pair of Dell'Orto PHF32 AS/AD carbs. This sale includes what you see in these photos PLUS our carb synchronization guide which will be emailed to you once the order is dealt with on this end.
-> Please only choose EXPRESS or PRIORITY shipping when you place your order (we will not ship these internationally via First Class / Parcel Post).
- Everything taken apart & ultrasonic cleaned
- Body, top caps, banjos, pump housings, choke housings media blasted
- New 60 idle jets installed - 122 mains reused as they appeared newish
- New #250 float needle valves installed
- New pump diaphragms installed
- New choke plungers installed
- New gaskets & o-rings etc installed (everything soft)
- New 70/2 slides installed

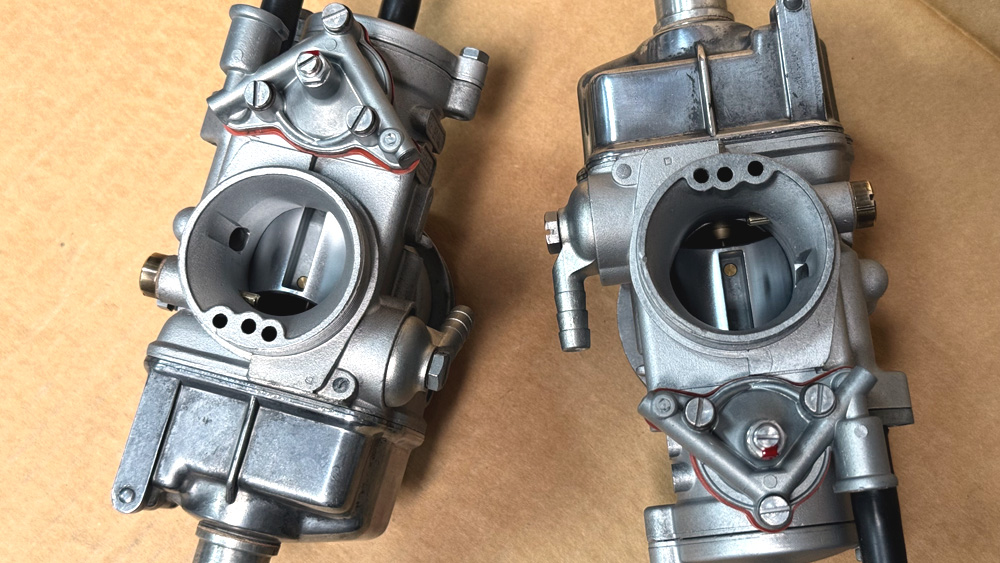

The carbs were in pretty good shape to begin with so we kept/reused all the original fasteners. We elected to install new slides & idle jets (incorrect size were in there) when we were reassembling them with everything soft inside being replaced as well. The bores of these carbs are in fine shape.
These will work on any Ducati bevel drive twin that have the correct PHF intake manifolds such as 750GT, 750 Sport, all 860/900 GT/S, along with some 900 Super Sports & SD900 Darmah. If you need manifolds, we have various options available along with intake manifold insulators and cables, Cavis Benz fuel hose, hose clips & clamps etc.
Specifications:
- Slide : 70/2
- Needle : K6
- Atomizer : AB265
- Main Jet : 122
- Idle Jet : 60
- choke jet : 75
Cavis Benz fuel hose - click HERE.
Fuel hose spring clips (the SATIN ones are identical to originals) - click HERE.
58mm intake manifold kit for Ducati Darmah, S2 etc (E start) - click HERE.
58mm intake manifold kit for Ducati 900 Super Sport - click HERE.
52mm intake manifold insulators - click HERE.
58mm intake manifold insulators - click HERE.
Of course we can do the same to your Dellorto carb(s), just send them over.... eMail [email protected] or give us a call 1.925.798.2385 to discuss. More details can be found in the RESTORATION SERVICES section of this website as well.
