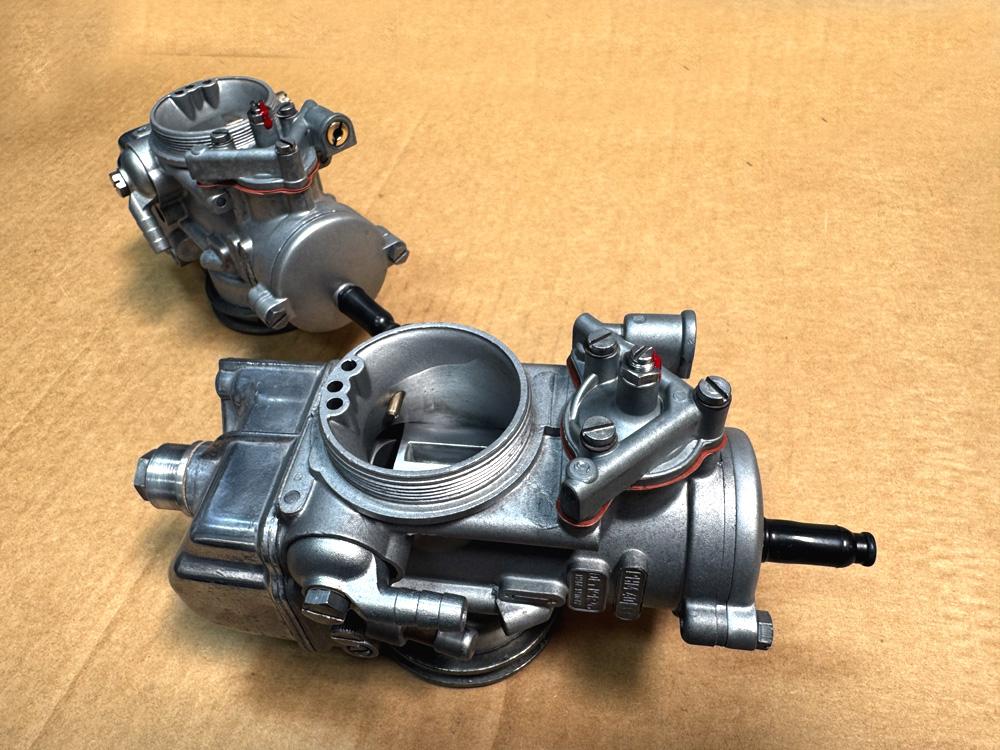

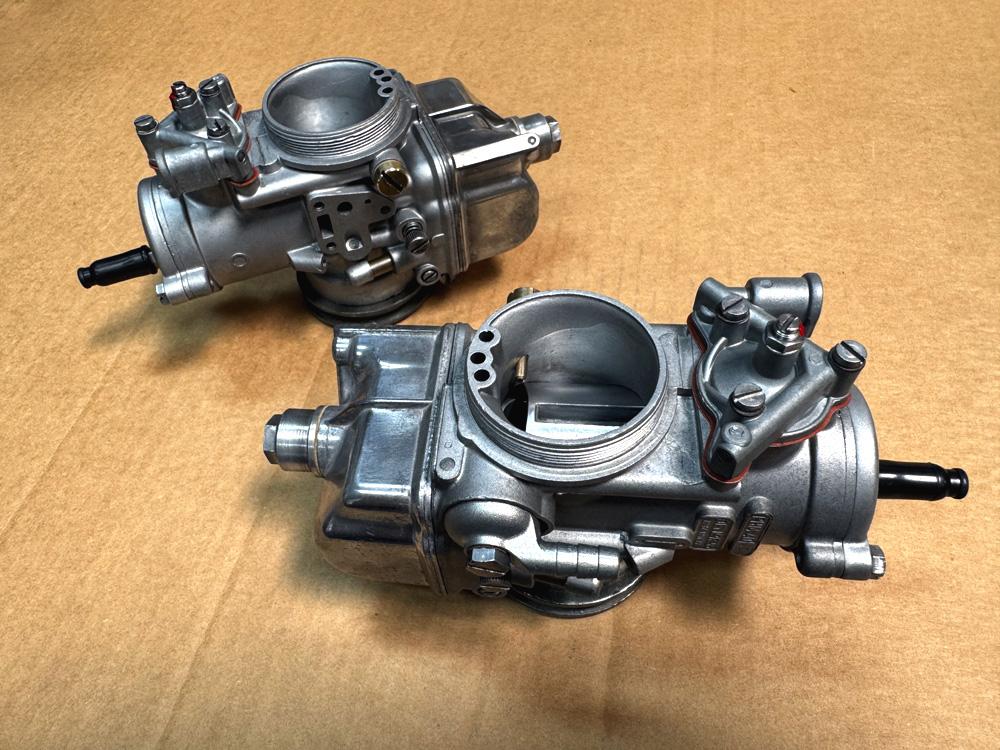

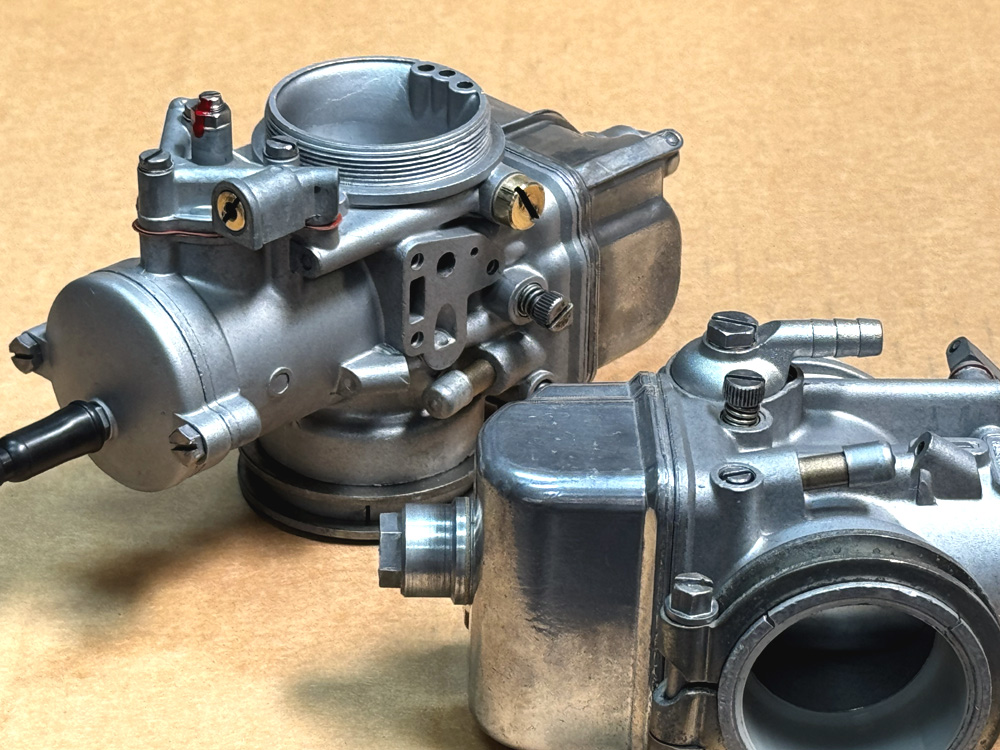

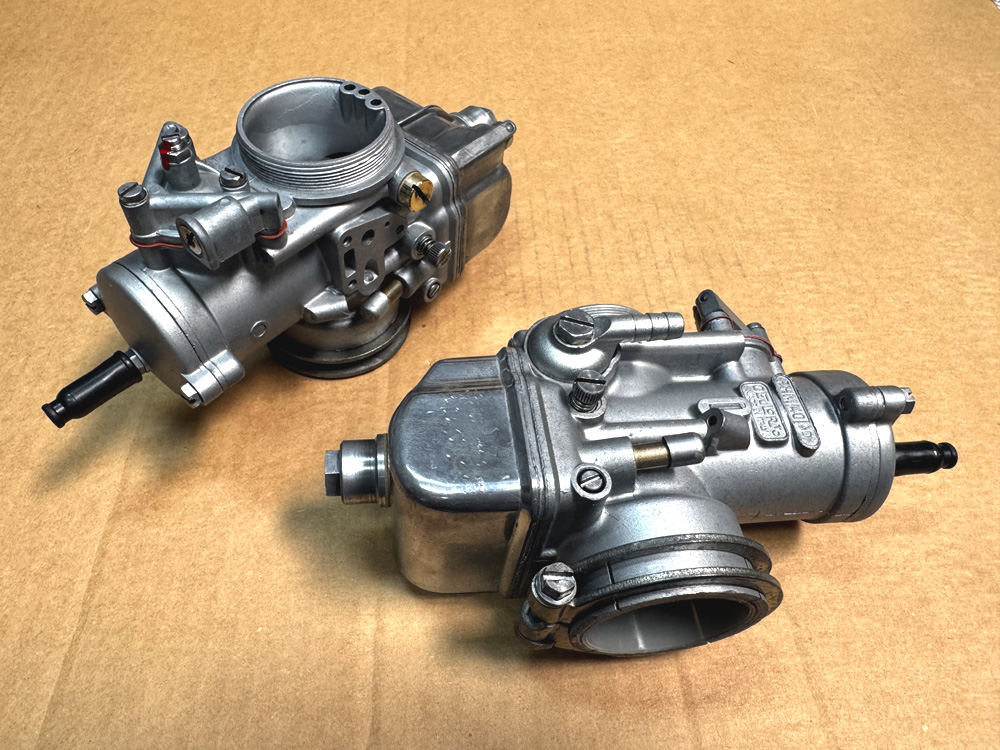

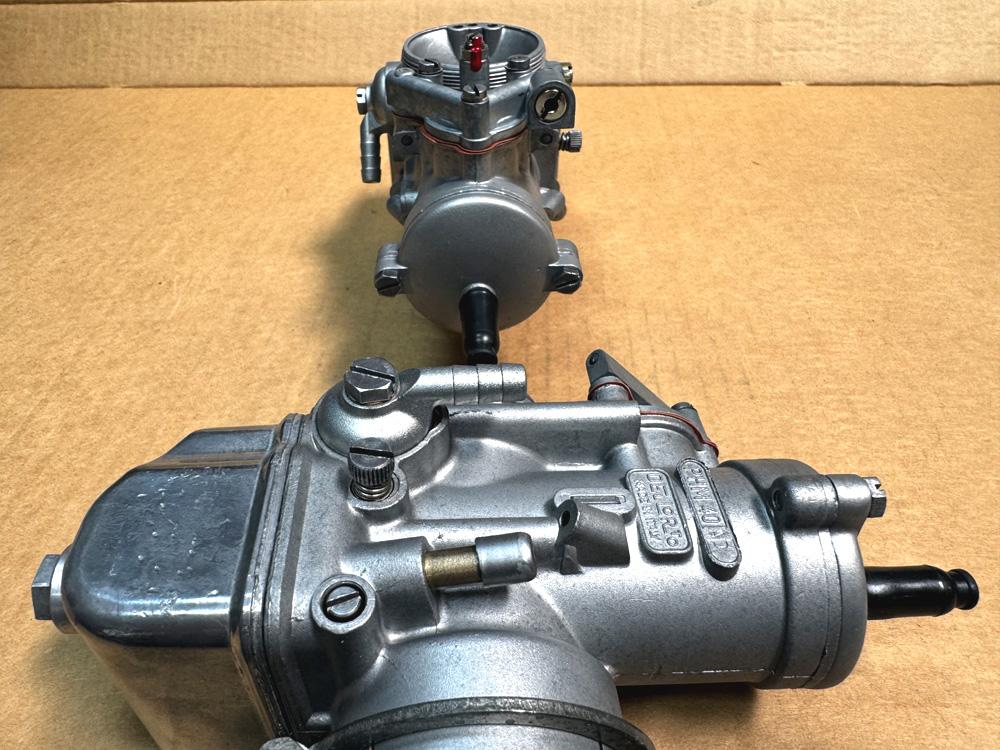

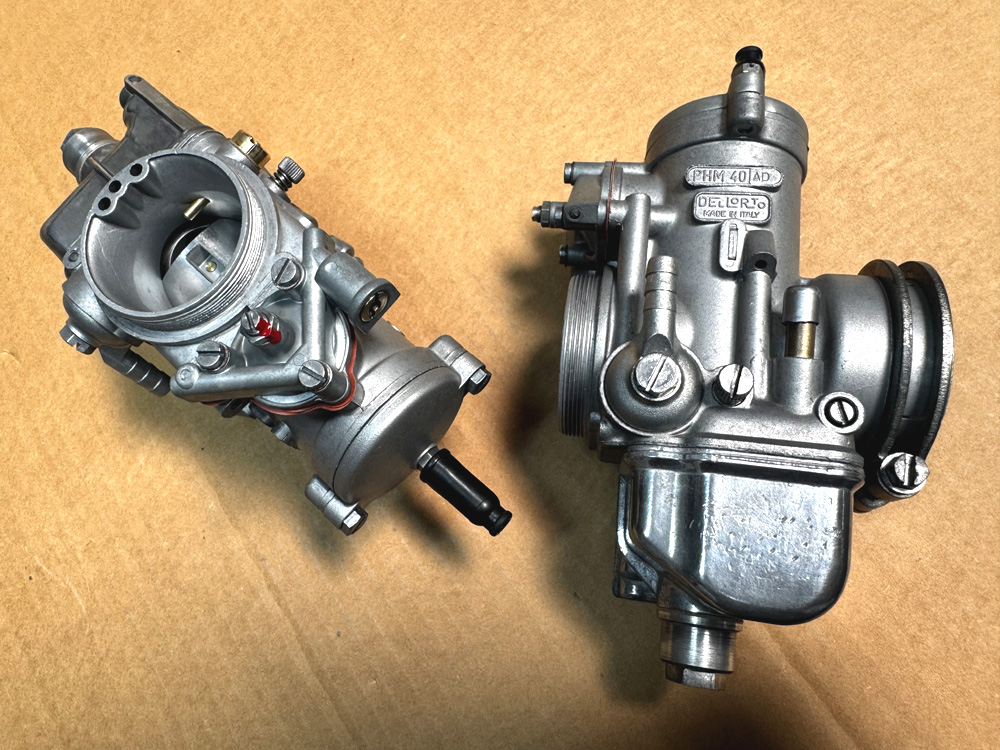

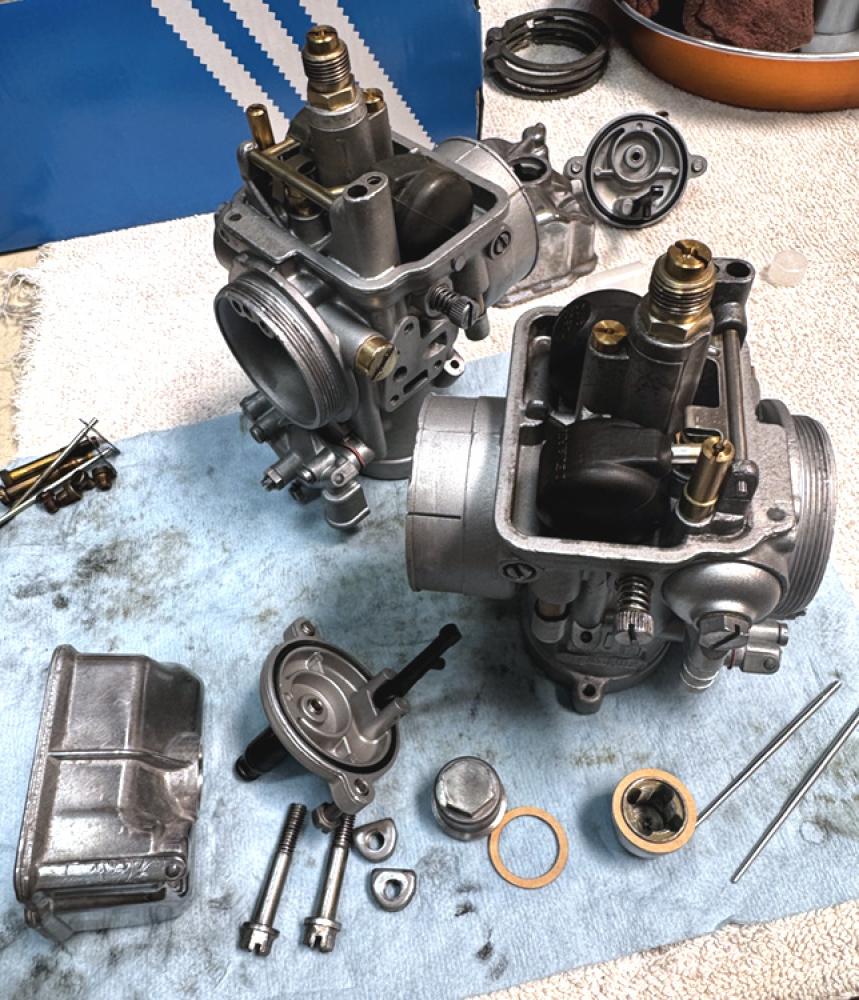

This is a freshly rebuilt pair of Dell'Orto PHM40 AS/AD carbs. This sale includes what you see in these photos PLUS our carb synchronization guide which will be emailed to you once the order is dealt with on this end.
-> Please only choose EXPRESS or PRIORITY shipping when you place your order (we will not ship these via First Class / Parcel Post).

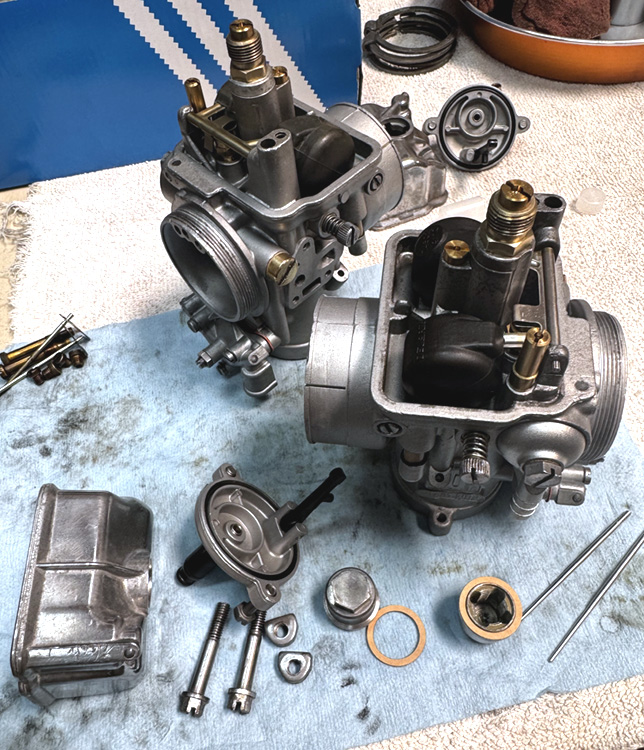

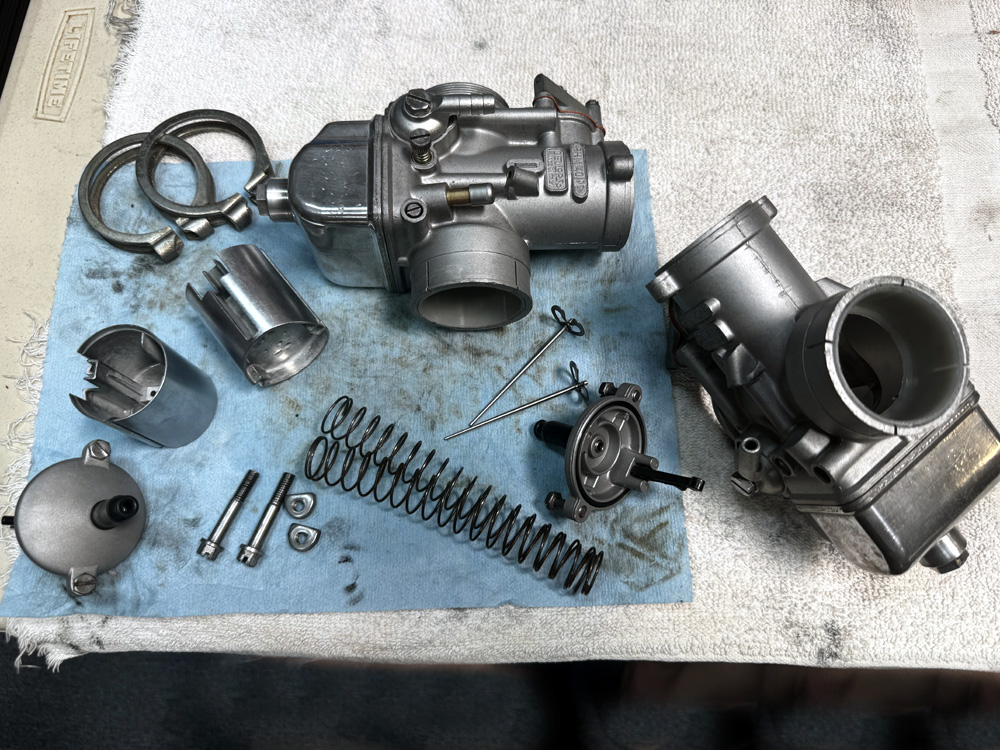

- Everything taken apart & ultrasonic cleaned
- Body, top caps, banjos, pump housings, choke housings media blasted
- New slides installed
- New slide springs installed
- New atomizers installed
- New needles installed
- New main & idle jets installed
- New pump jet return jets installed
- New pump arms & springs installed
- New float needle valves installed
- New pump diaphragms installed
- New gaskets & o-rings etc installed (everything soft)
The carbs were in pretty good shape to begin with so we kept/reused all the original fasteners. We installed new slides & springs, needles, atomizers & main/idle jets when we were reassembling them with everything soft inside being replaced as well. The bores of these carbs are in fine shape.
These will work on any Ducati bevel drive twin that have the correct PHM intake manifolds ie; 860/900 GT/S, 900 Super Sports & SD900 Darmah. If you need manifolds, we have various options available along with intake manifold insulators and cables, Cavis Benz fuel hose, hose clips & clamps etc.
Specifications:
- Slide : 60/1
- Needle : K4
- Atomizer : AB265
- Main Jet : 152
- Idle Jet : 60
- Slide Spring : Medium
Cavis Benz fuel hose - click HERE.
Fuel hose spring clips (the SATIN ones are identical to originals) - click HERE.
58mm intake manifold kit for Ducati Darmah, S2 etc (E start) - click HERE.
58mm intake manifold kit for Ducati 900 Super Sport - click HERE.
52mm intake manifold insulators - click HERE.
58mm intake manifold insulators - click HERE.
Of course we can do the same to your Dellorto carb(s), just send them over.... eMail [email protected] or give us a call 1.925.798.2385 to discuss. More details can be found in the RESTORATION SERVICES section of this website as well.
