Rebuild & Restoration Services For Dell'Orto Motorcycle Carbs
We can either do a simple rebuild for you all the way up to a full on restoration on your PHF, PHM, UB, VH, SSI etc Dellorto carbs. Bevel Heaven founder/owner Steve Allen knows his way around these carbs, having rebuilt literally hundreds of them over the years. Let him worry about getting everything correct and in the right places...
REBUILD SERVICES:
Typically includes a thorough cleaning then replacing everything soft inside your carbs by default. Any hard parts (slides, needles, atomizers, jetc etc) will be replaced as needed. Whatever it needs or whatever you want so it functions as new.
SLIDE MACHINE SERVICE:
Send me your carbs, idle screws and idle screw springs and I will machine the back of the idle ramps of your new style slides so they work on your old style carbs - PHF or PHM. I will always need to trim the idle screw SPRING so it's shorter, and sometimes the idle screw itself must be replaced with a new one....
RESTORATION SERVICES:
Includes everything above and replace any fasteners etc or as needed and most likely includes external blasting.
BLASTING SERVICES:

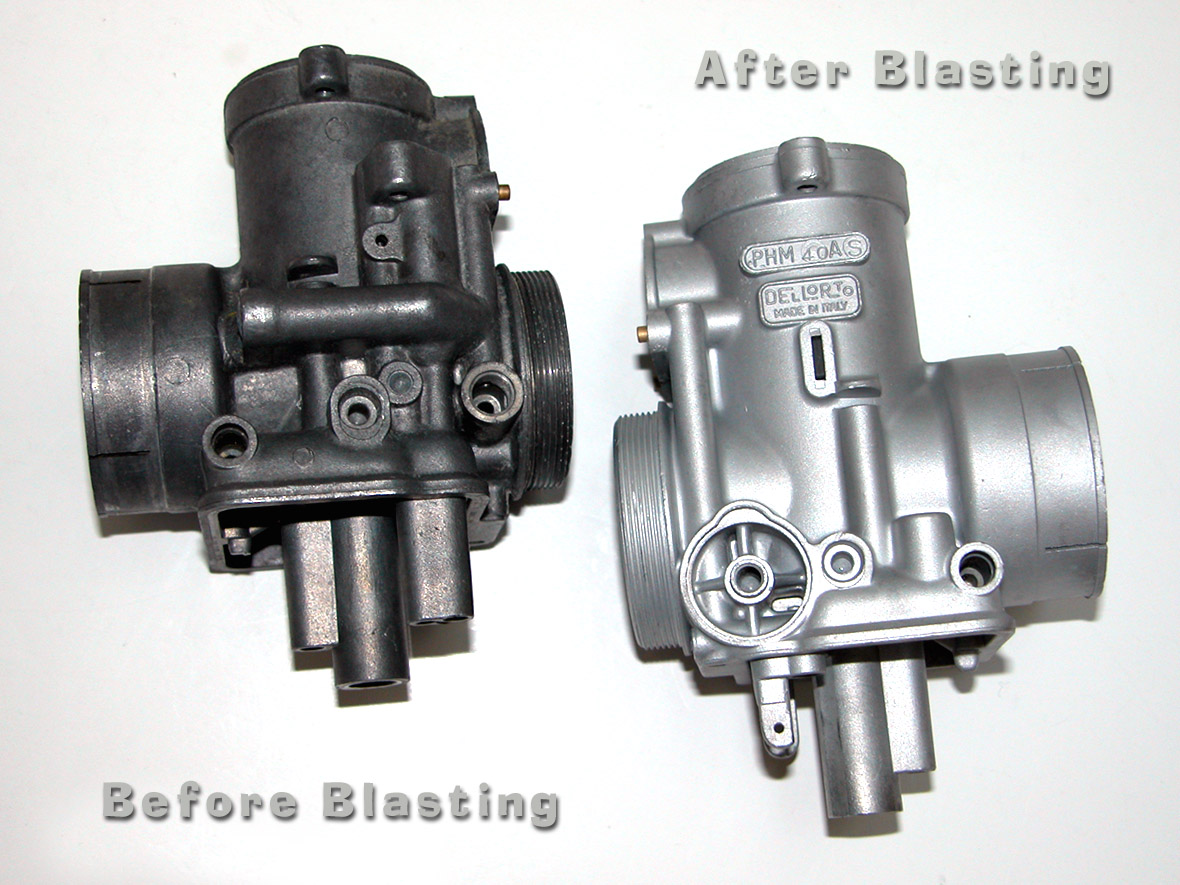

Typically adds approximately $125 +/- per unit above the rebuild service. The process involves blasting with whatever the appropriate media is needed, depending on how stained your carb bodies are. See the photo below showing a before and after..
SHIPPING YOUR CARBS TO BEVEL HEAVEN:
Make sure your carbs are completely dry before shipping. That means removing the carb bowls, draining and letting sit for a few days then loosly putting back together. Double Zip-Lock bag each carb and protect each with bubble wrap etc. When you box them up also put a dryer sheet in the box to try to mask the gas smell that might be present. We don't want the shipper to think there is something explosive in the box and destroy it. Yes that has happened in the past. Make sure you put a note inside the box spelling out EXACTLY what you want done to your carbs and also include all your contact info.
TURN AROUND TIME:
I can usually turn these around in 2-3 weeks time depending on current work load ie how many jobs are in line ahead of you once your items arrive here.
PRICING:
Basic rebuild: Starting at $75 for parts & $225 labor per unit+ shipping and California sales tax if shipped to a California address.
Restoration: Starting at $75 for parts, $125 blast, $225 labor per unit+ shipping + Ca sales tax if applicable.
Machine New Slides: $35 per slide.
NOTE: The above prices are approximate but typical. Some carbs take less work others take more......
* NOTE: any hard parts needed ie slides, needles, atomizers, jets etc not included in above estimates and their costs are added to your total.
