Fuse Box - 900SS etc
Part #: 0797.38.476
Price:
$63.79
The selected item is out of stock, please select a different item or combination
0797.38.476 (079738476)

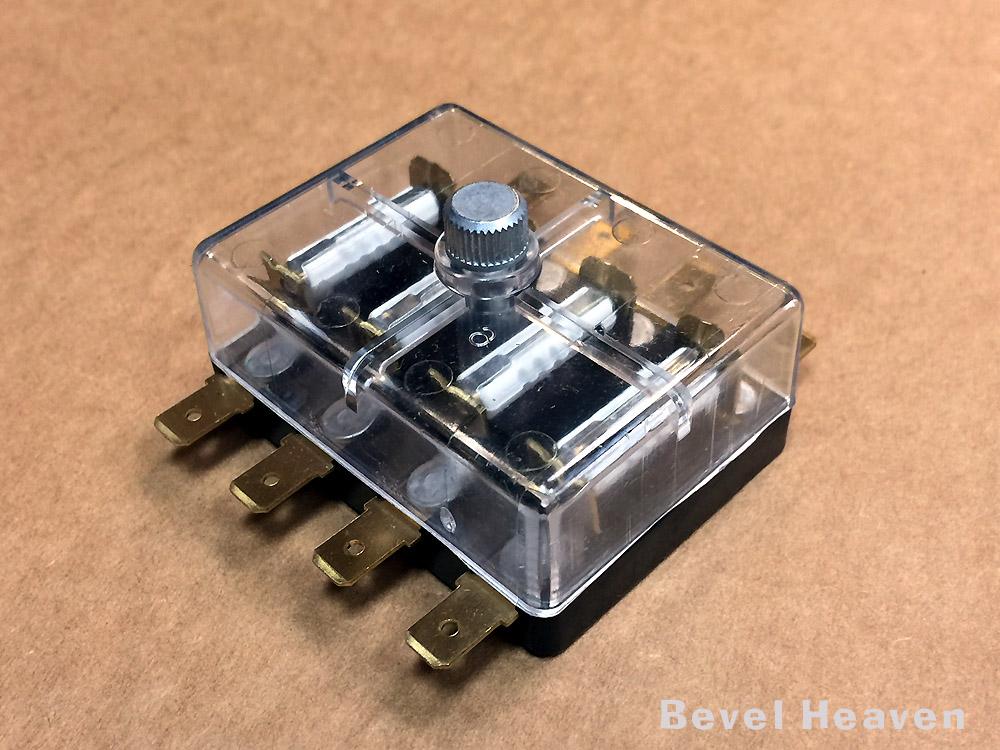

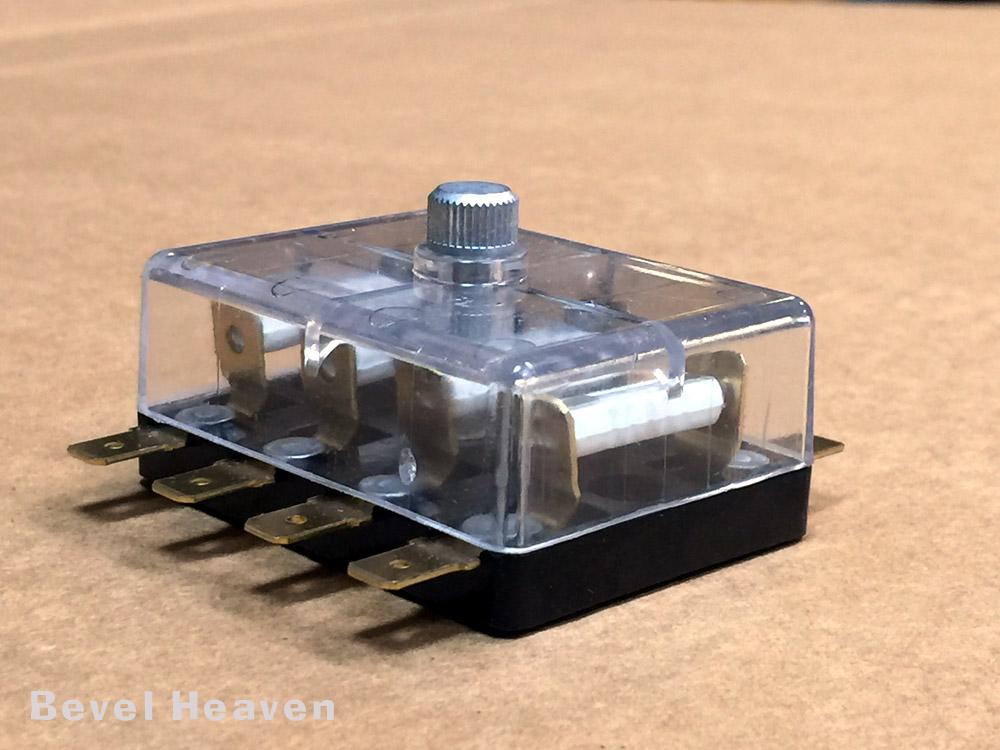

This is a super high quality spade type fusebox with a screw on clear cover EXACTLY the same as what was found on many bevel drive twins.

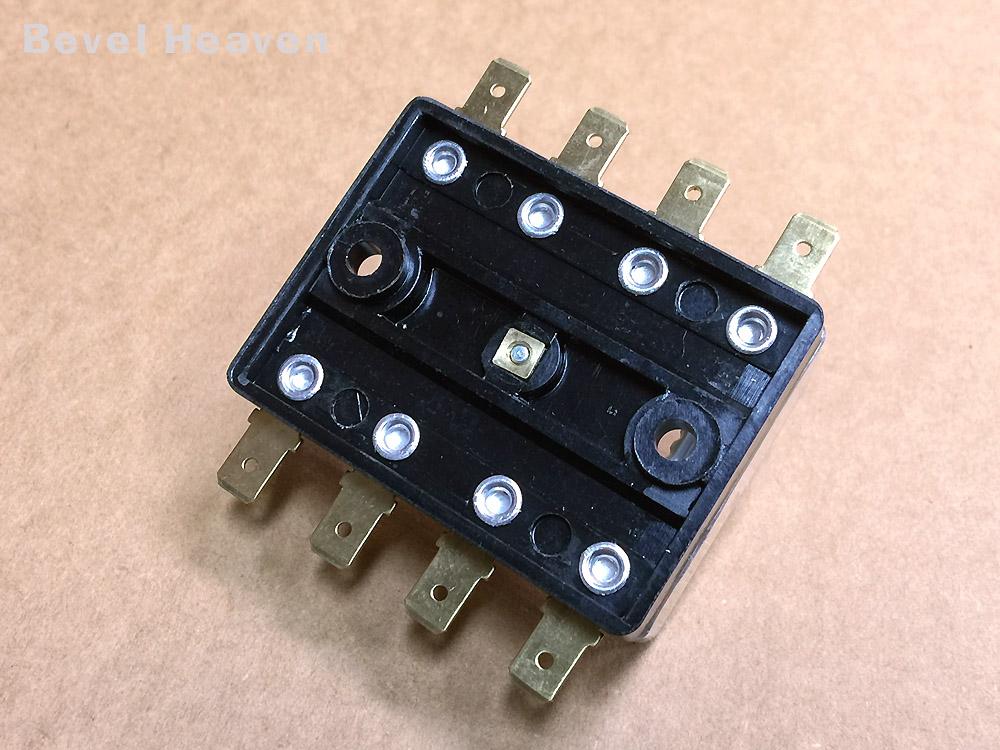

Note: If your fusebox came with 5mm screws holding it to the frame you will need to ream out the mount holes in this base with a 13/64" drill bit or just use 4mm screws to bolt it to your frame in the original position etc.

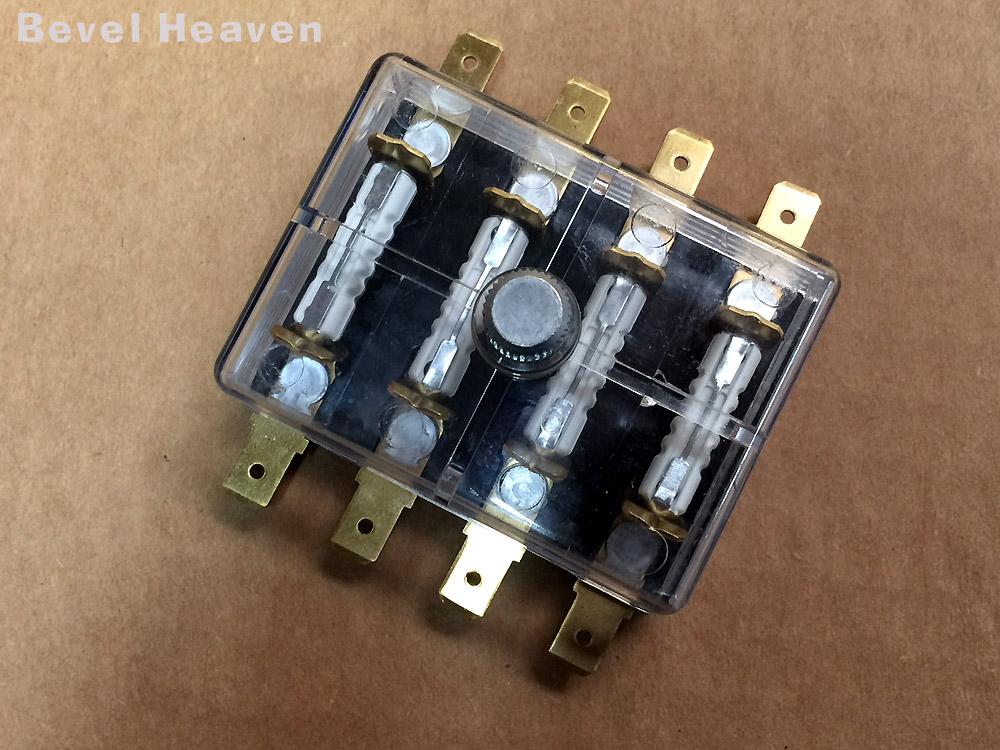

The fuse box in the photos are shown with 4x 8 amp GBC type fuses - please pick which fuses you want sent along with your fuse box.

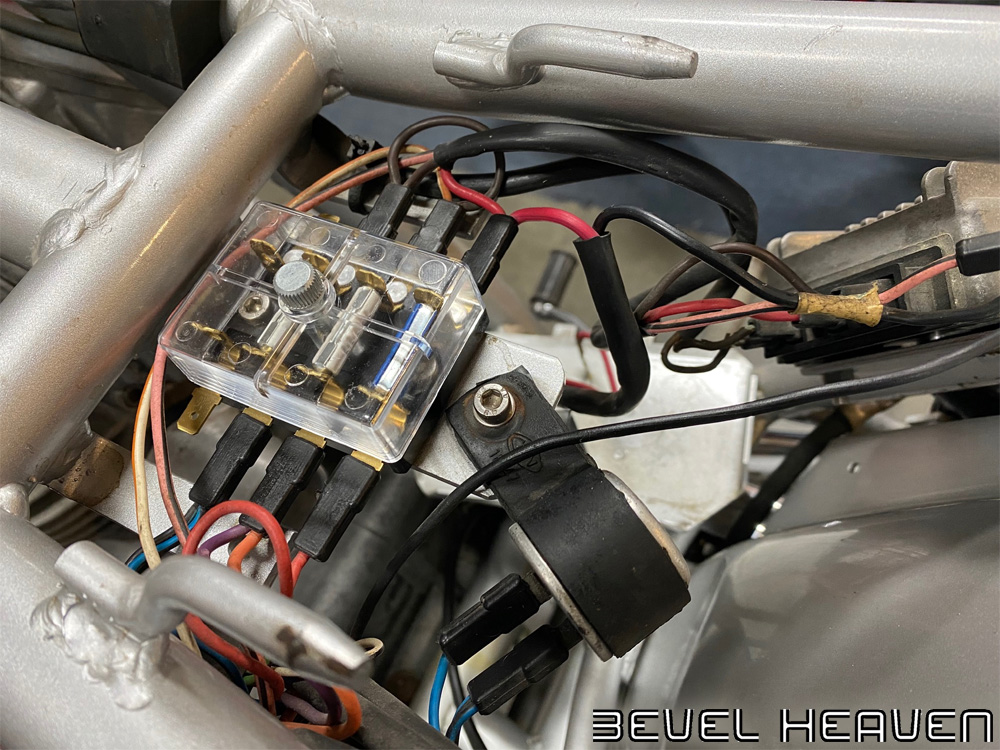

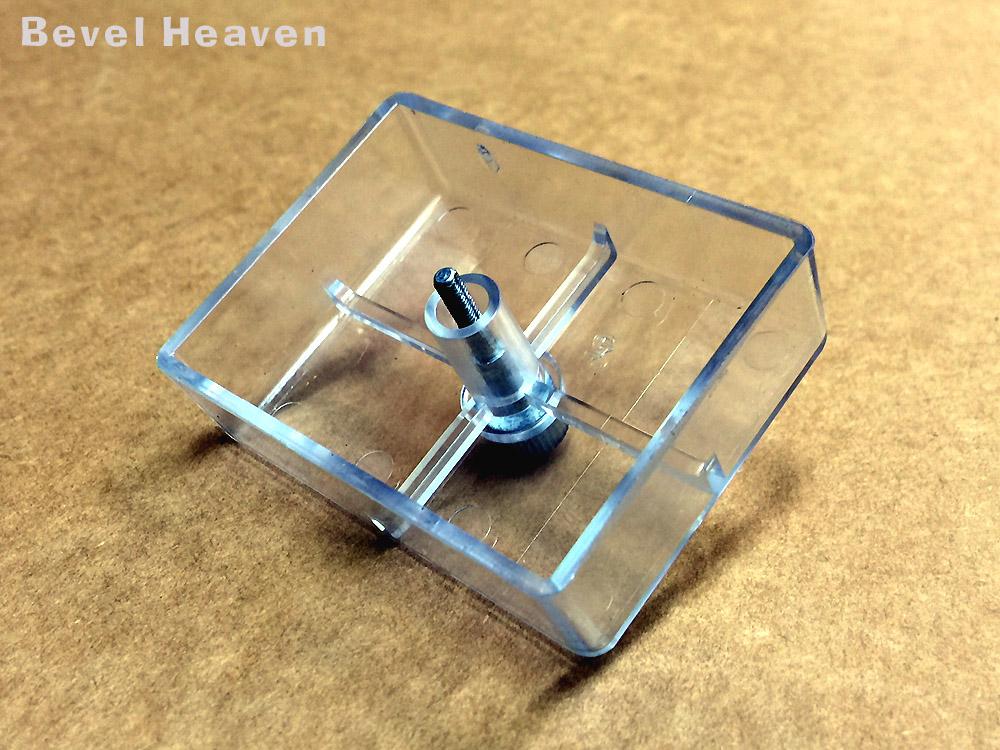

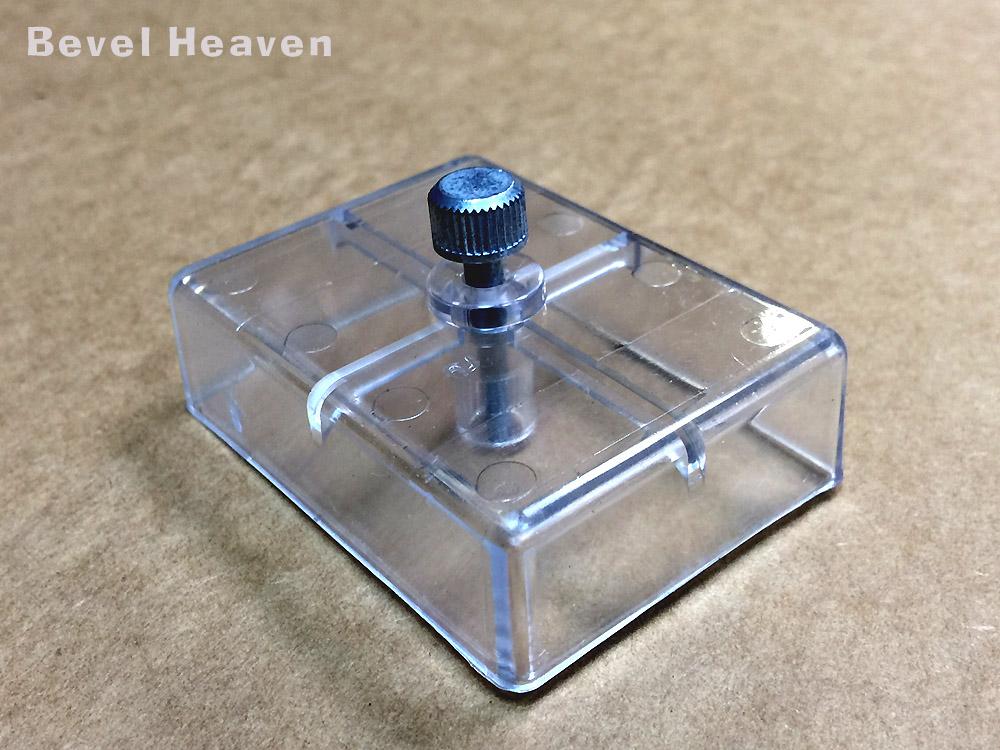

The cover has a standoff built into the bottom as you can see, so that you will not crush the cover when you tighten the screw that holds the cover on. There are holes for mounting to your frame, exactly as on our 1977 900 Super Sport currently under restoration, at 45mm center to center as per original.
The box itself measures 45mm x 59mm and is 25mm tall (not counting the spade connectors or thumb screw for the top piece).
* You most likely will need other fuse values (besides just 8 amp) for your bike - we stock 5, 8, 10, 16 & 25 amp GBC ceramic type fuses. Click HERE to purchase fuses individually.

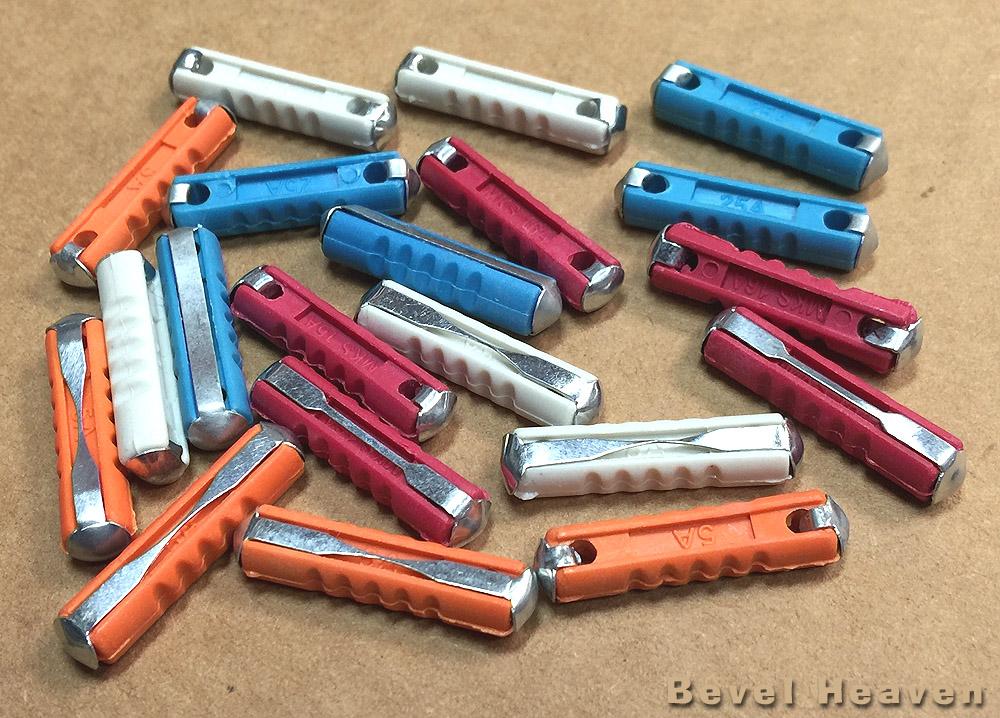

** You can purchase a 18 piece assortment of GBC ceramic type fuses (whatever quantity you need of each available sizes we stock including; 5, 8, 10, 16 & 25 amp fuses - see photo below) - click HERE.
Or simply choose "Fuse Box & 18 Additional Fuses". We will then send you whatever you want as long as the total number of fuses equals 18. So, if you want something other than 6 of each size, just type what you want in the box above meaning how many you want of what size and we will send that to you - no problem. (ie; "send qty 10x 16amp, 4x 25amp & 4x 8amp" or whatever you want).
This is a super high quality spade type fusebox with a screw on clear cover EXACTLY the same as what was found on many bevel drive twins.
Note: If your fusebox came with 5mm screws holding it to the frame you will need to ream out the mount holes in this base with a 13/64" drill bit or just use 4mm screws to bolt it to your frame in the original position etc.
The fuse box in the photos are shown with 4x 8 amp GBC type fuses - please pick which fuses you want sent along with your fuse box.
The cover has a standoff built into the bottom as you can see, so that you will not crush the cover when you tighten the screw that holds the cover on. There are holes for mounting to your frame, exactly as on our 1977 900 Super Sport currently under restoration, at 45mm center to center as per original.
The box itself measures 45mm x 59mm and is 25mm tall (not counting the spade connectors or thumb screw for the top piece).
* You most likely will need other fuse values (besides just 8 amp) for your bike - we stock 5, 8, 10, 16 & 25 amp GBC ceramic type fuses. Click HERE to purchase fuses individually.
** You can purchase a 18 piece assortment of GBC ceramic type fuses (whatever quantity you need of each available sizes we stock including; 5, 8, 10, 16 & 25 amp fuses - see photo below) - click HERE.
Or simply choose "Fuse Box & 18 Additional Fuses". We will then send you whatever you want as long as the total number of fuses equals 18. So, if you want something other than 6 of each size, just type what you want in the box above meaning how many you want of what size and we will send that to you - no problem. (ie; "send qty 10x 16amp, 4x 25amp & 4x 8amp" or whatever you want).
NOTE: 15 amp fuses are not available which is what the manuals say to use but we can get 16 amp fuses to use in place of the 15 amp fuses.....
Typical usage per workshop manuals:
* 750 GT / Sport ~ 3 x 16 amp, 1 x 25 amp.
* 860 GT ~ 1 x 25 amp, 4 x 8 amp.
* Pre Bosch Super Sport ~ 4 x 16 amp.
* Bosch Super Sport ~ 2 x 8 amp, 1 x 25 amp
* Darmah ~ 2 x 8 amp, 2 x 25 amp.
