This is a 39" long alternator wire kit for MHR & S2 Mille Ducati as well as other 3 wire bevel drives.

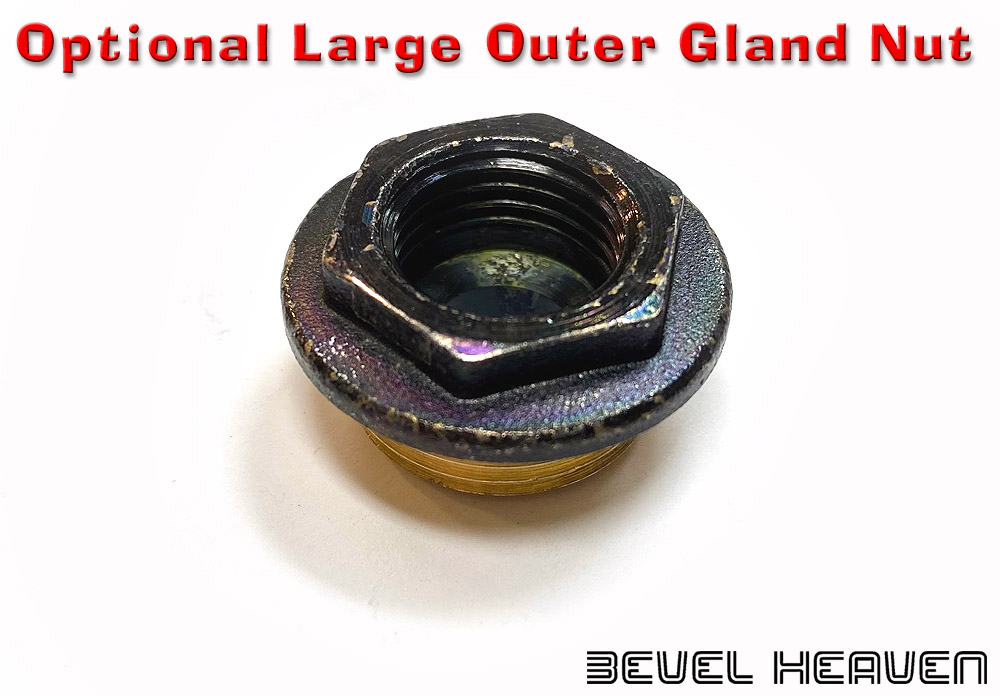

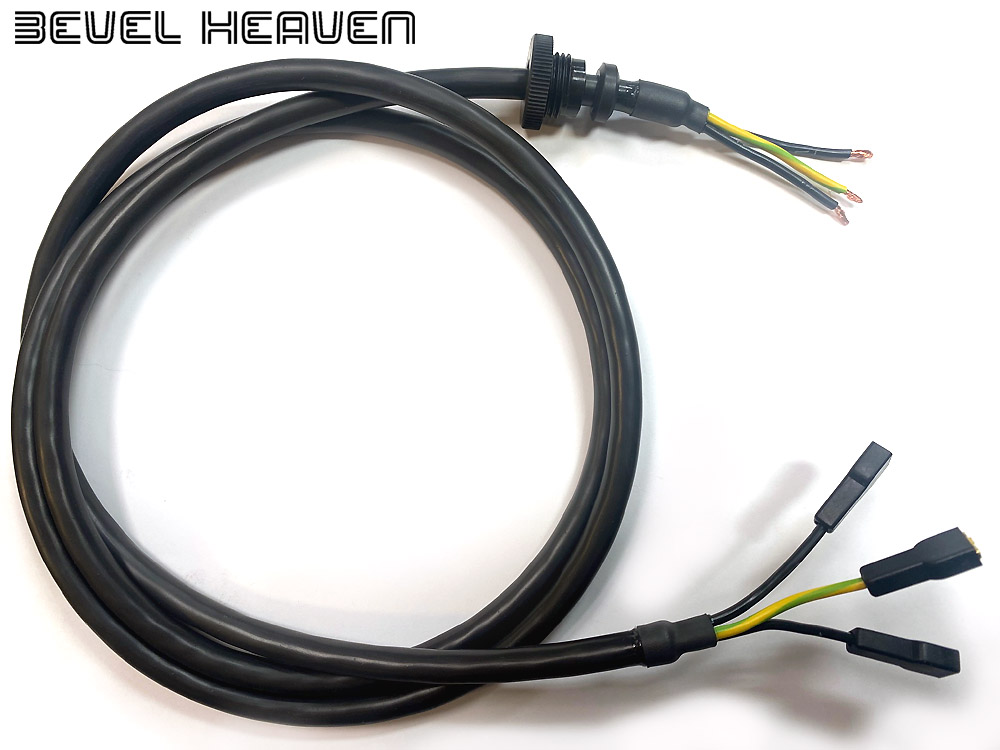

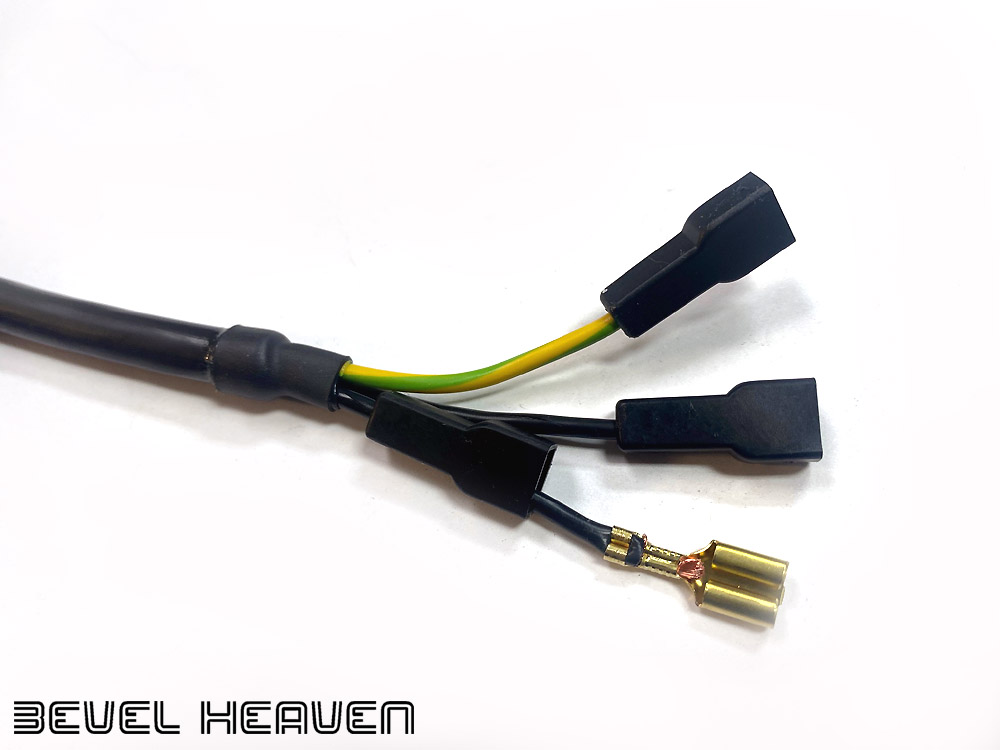

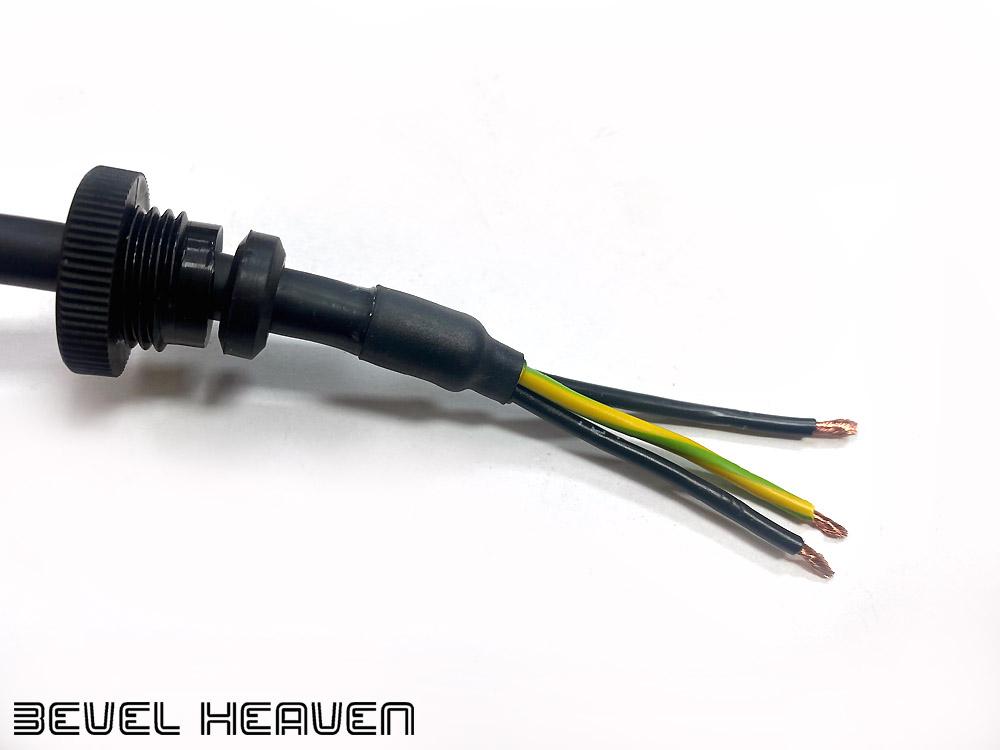

You get what you see here in the photo including; 39" (99cm) of chemical & heat resistant sheathed multi strand copper 16 AWG wire in a black heat & chemical resistant outer sheathing that is the perfect outside diameter to fit in your gland nut assembly. You get the wire, 3x butt connectors you can use to attatch it to the wires soldered on your alternator (or just solder the new wire in place), the opposite end has 3 female brass spade connectors correctly crimped on the wires with rigid black plastic covers exactly as per original on the regulator end. Lastly you get a new rubber gland nut grommet as well as a new black plastic outer gland nut as you see in the photo. If you also need to get a new large outer gland nut that threads into the case we have those as well - you can choose to get one in the drop down menu.

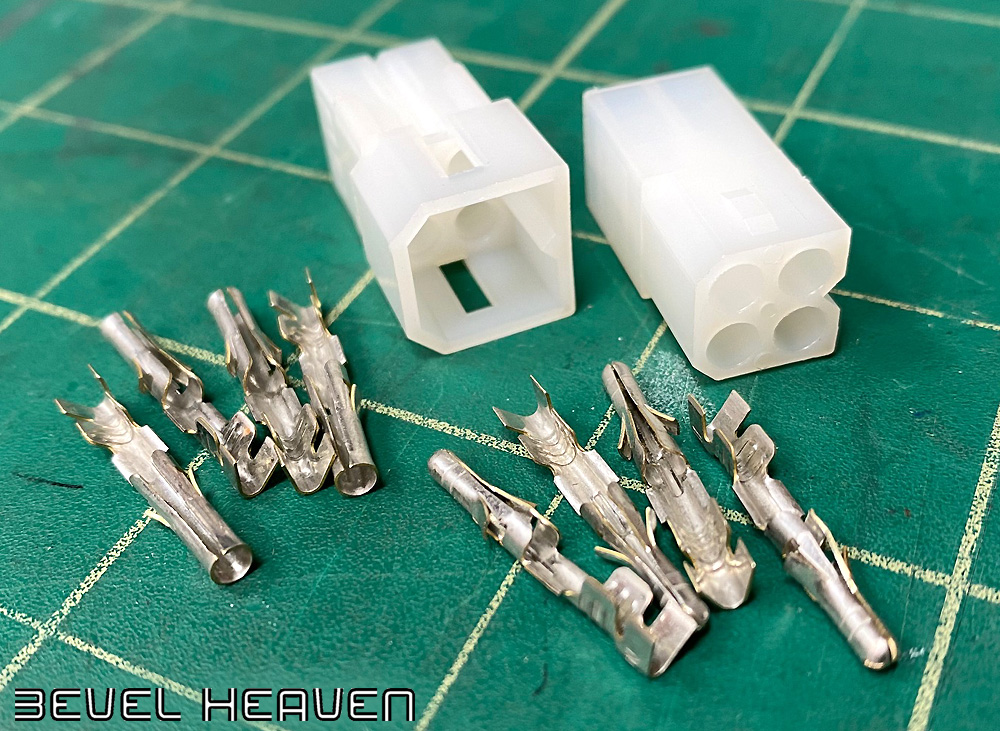

Fitment: Ducati bevel drive mille MHR & S2 with a 3 wire alternator. SOME (later) versions have a 4 gang molex connector (see green background photo) between the stator & regulator. If your bike has that connector I can include the connectors & Molex plugs just choose to add them above.
)
)
)
)
