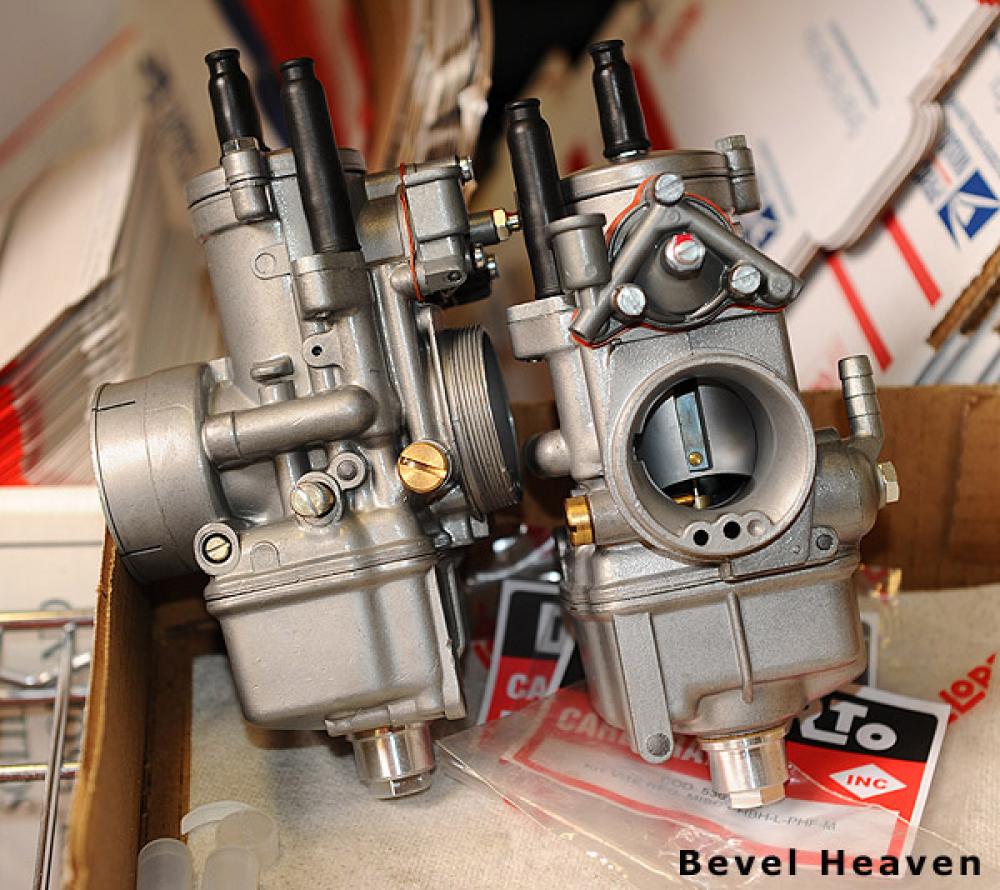

This is a concise and complete 'how-to' manual to disassemble, clean and correctly reassemble a Dell'Orto PHF carb, written by Bevel Heaven owner/founder Steve Allen.

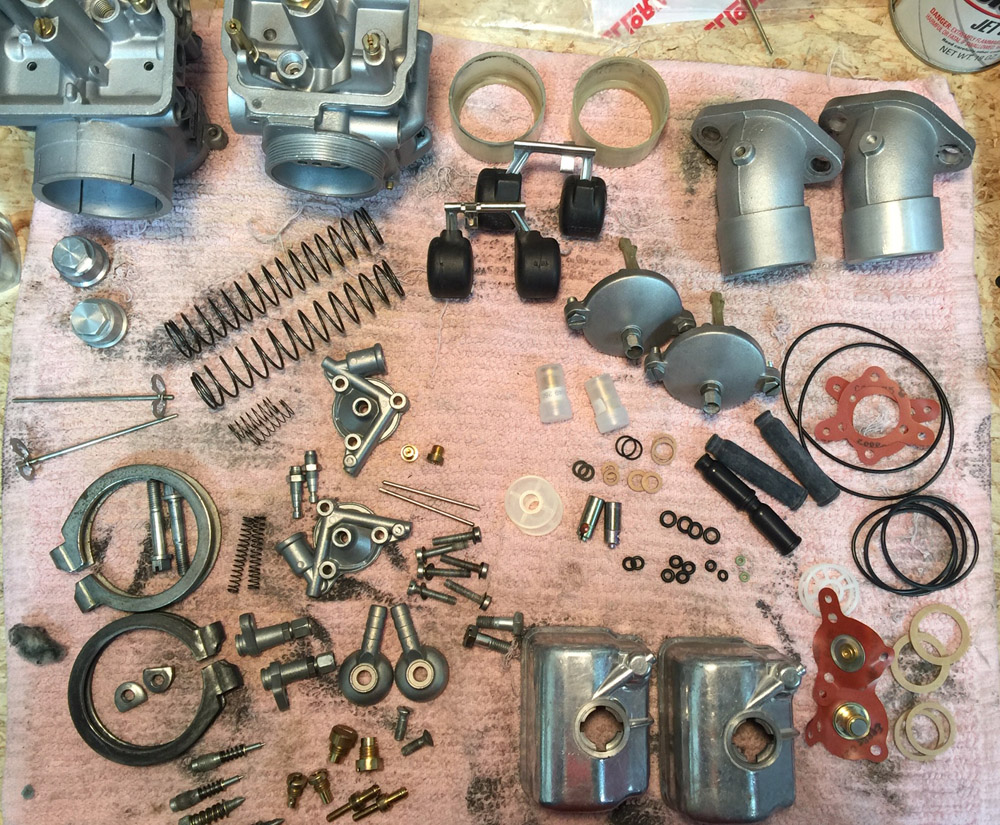

We show you the contents of a PHF seal kit with everything labeled, as well as the exploded view of a PHF carb which is labeled as well. We explain what each part of the kit is and where it goes. We describe dissassembly steps, using which specific tools needed, and how to clean everything. Then we explain how to reassemble the carb again explaining which parts in the kit go where along with giving advice on what to look out for etc etc. We show you how to change your pump arm and how to tell if your slide needs replacement or not. We have included lots of assembly photos.
19 pages, 3570 words, 30 images.
Don't guess, get proper instructions written by someone who has done the job hundreds of times.
Once you complete checkout, you get an order confirmation email and it will contain a clickable link to your file. Once you click this link, please allow a moment or 3 for the .pdf file to download and it will present itself in your browser window or directly into your Adobe Acrobat viewer.
