Dellorto PHM40BD/BS Carb Set - Rebuilt - Ready To Go
Price:
$1,246.00
The selected item is out of stock, please select a different item or combination

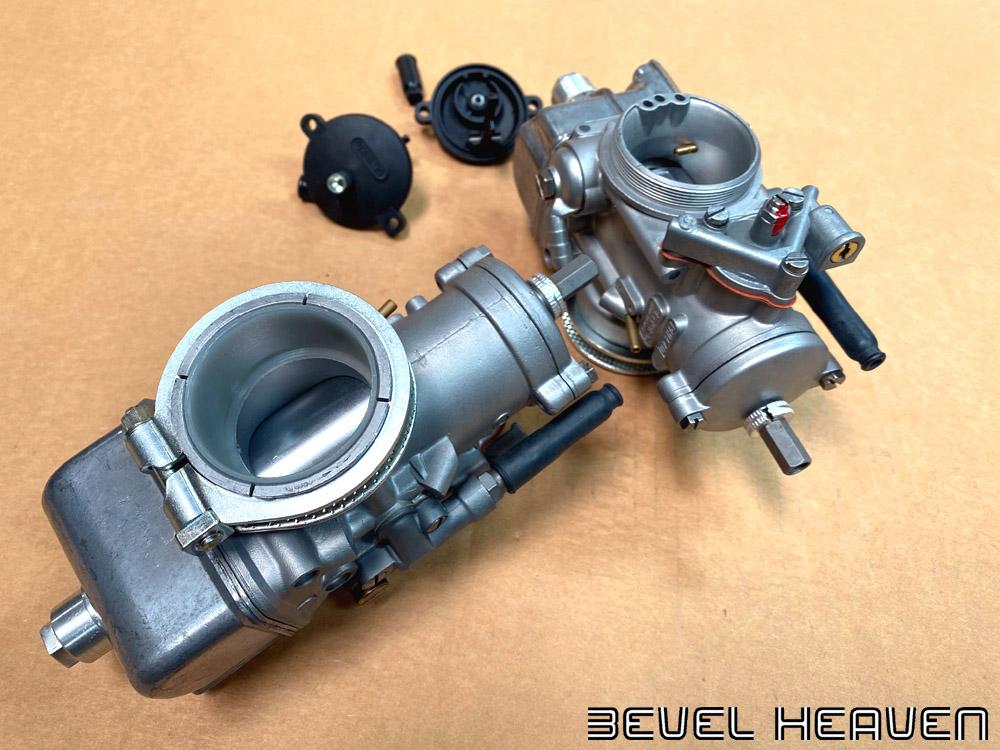

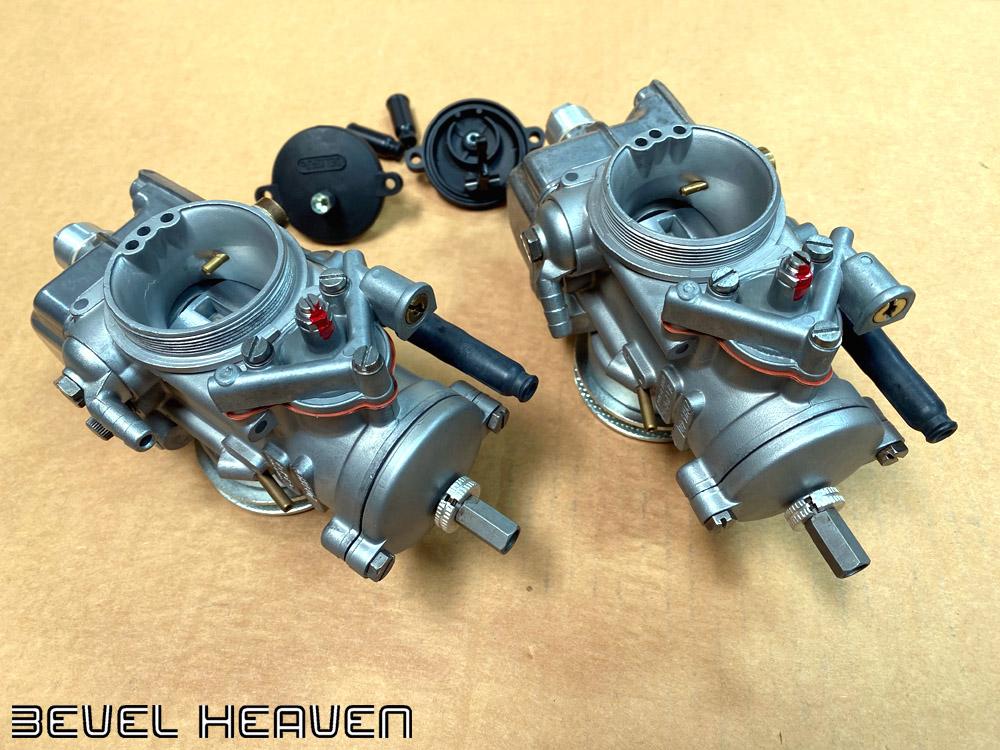

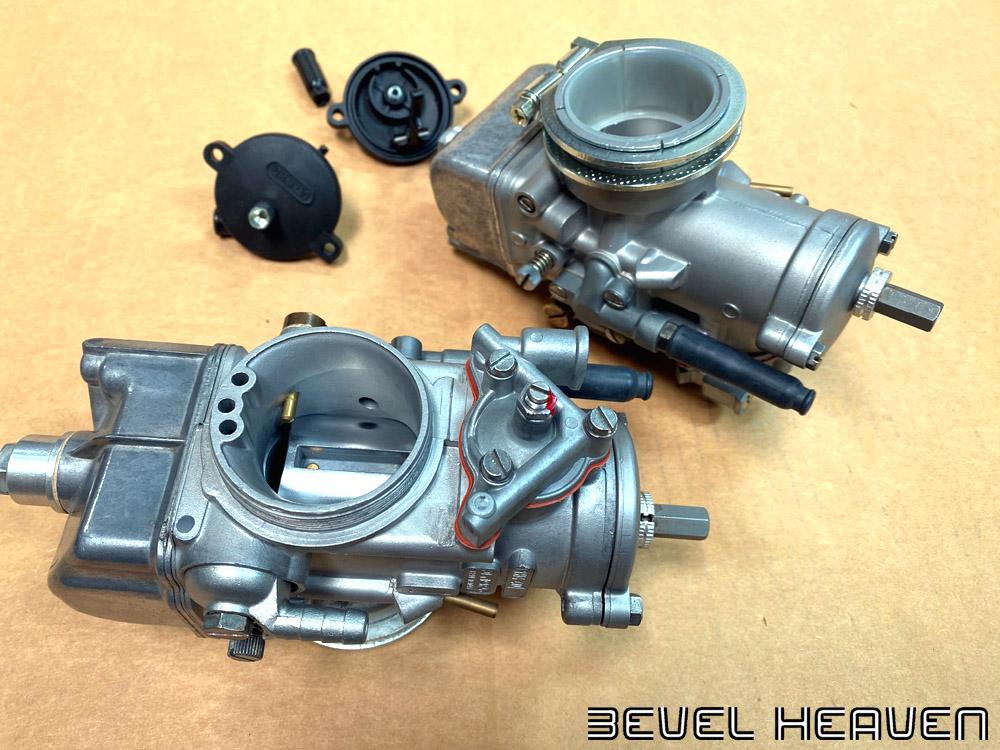

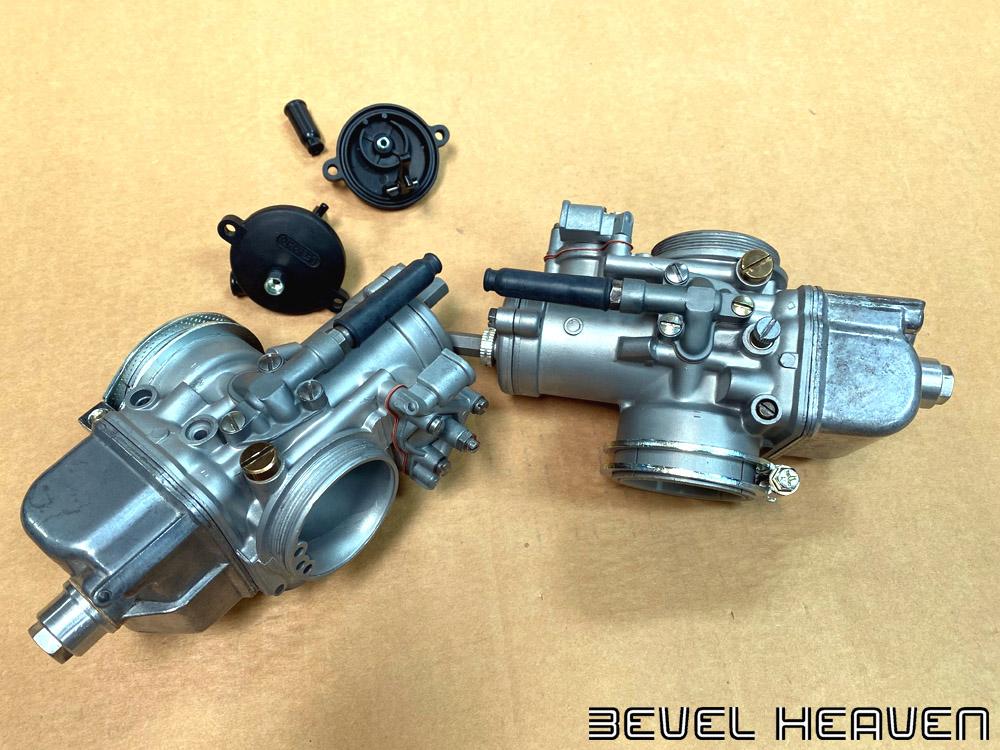

This is a freshly rebuilt pair of Dell'Orto PHM 40 BD/BS carbs. This sale includes what you see in these photos PLUS our carb synchronization guide which will be emailed to you once the order is dealt with on this end.
These carbs came stock on 900 MHR, Mille' MHR & S2
NOTE: You can choose to get these carbs with the new black plastic top caps, pump arms, springs etc you see sitting next to the carbs or with the alloy top caps as you see installed on the carbs.
-> Please only choose EXPRESS or PRIORITY shipping when you place your order (we will not ship these via First Class / Parcel Post).
These will work on any Ducati bevel drive twin that have the correct PHM intake manifolds such as some 900 Super Sports, MHR, S2 & SD900 Darmah. If you need manifolds, we have various options available along with intake manifold insulators and cables, Cavis Benz fuel hose, hose clips & clamps etc.
Specifications:

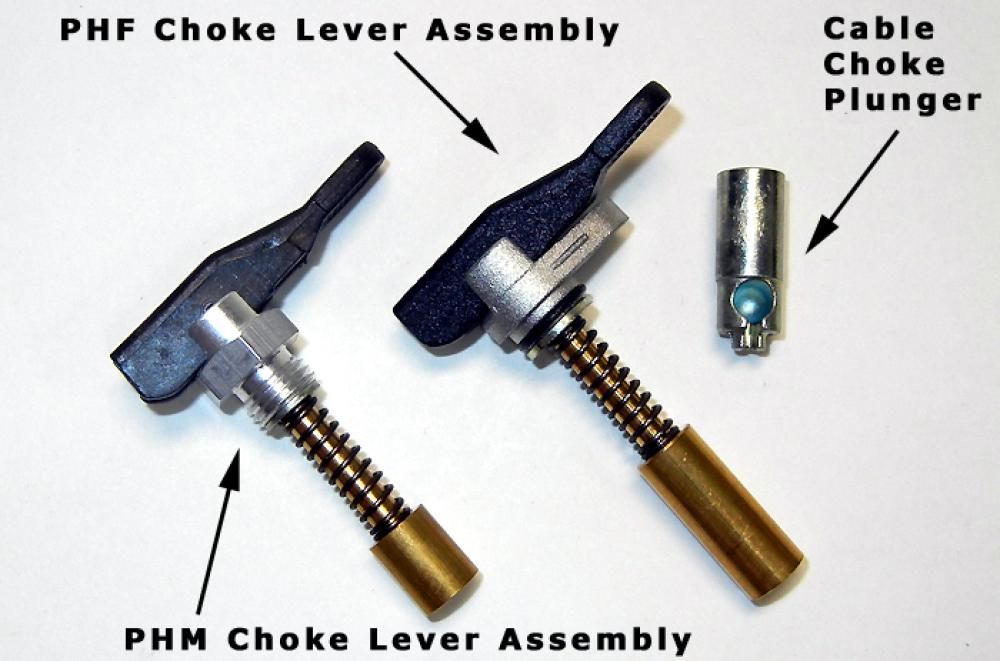

If you wish you had a cable actuated choke setup with a lever mounted on the bars or wherever and not have to tickle your carbs, these are for you. If you wish to have individual levers on each carb installed so not have cables, I can swap them out for you for $60 additional.
Cavis Benz fuel hose - click HERE.
52mm intake manifold insulators - click HERE.
58mm intake manifold insulators - click HERE.
-> International Buyers: Please only choose EXPRESS or PRIORITY shipping when you place your order (USA OK via First Class / Parcel Post).
Of course we can do the same to your Dellorto carb(s), just send them over.... eMail Shop@BevelHeaven.com or give us a call 1.925.798.2385 to discuss. More details can be found in the RESTORATION SERVICES section of this website as well.
These carbs came stock on 900 MHR, Mille' MHR & S2
NOTE: You can choose to get these carbs with the new black plastic top caps, pump arms, springs etc you see sitting next to the carbs or with the alloy top caps as you see installed on the carbs.
-> Please only choose EXPRESS or PRIORITY shipping when you place your order (we will not ship these via First Class / Parcel Post).
- Everything taken apart & ultrasonic cleaned
- Body, top caps, banjos, pump housings, choke housings media blasted
- New intake sleeves installed
- New main & idle jets installed
- New float needle valves installed
- New pump diaphragms installed
- New choke plungers installed
- New gaskets & o-rings etc installed (everything soft)
- New slides
- New needles & atomizers
- New clamps, bolts & nuts
These will work on any Ducati bevel drive twin that have the correct PHM intake manifolds such as some 900 Super Sports, MHR, S2 & SD900 Darmah. If you need manifolds, we have various options available along with intake manifold insulators and cables, Cavis Benz fuel hose, hose clips & clamps etc.
Specifications:
- Slide : 60/1
- Needle : K5
- Atomizer : AB265
- Main Jet : 140
- Idle Jet : 65
If you wish you had a cable actuated choke setup with a lever mounted on the bars or wherever and not have to tickle your carbs, these are for you. If you wish to have individual levers on each carb installed so not have cables, I can swap them out for you for $60 additional.
Cavis Benz fuel hose - click HERE.
52mm intake manifold insulators - click HERE.
58mm intake manifold insulators - click HERE.
-> International Buyers: Please only choose EXPRESS or PRIORITY shipping when you place your order (USA OK via First Class / Parcel Post).
Of course we can do the same to your Dellorto carb(s), just send them over.... eMail Shop@BevelHeaven.com or give us a call 1.925.798.2385 to discuss. More details can be found in the RESTORATION SERVICES section of this website as well.
