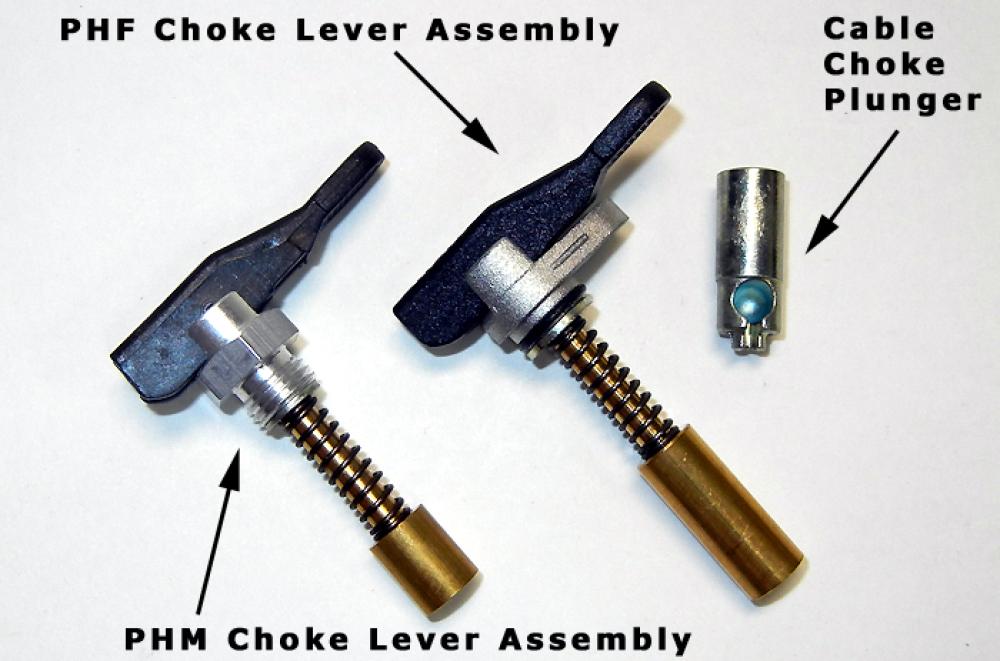

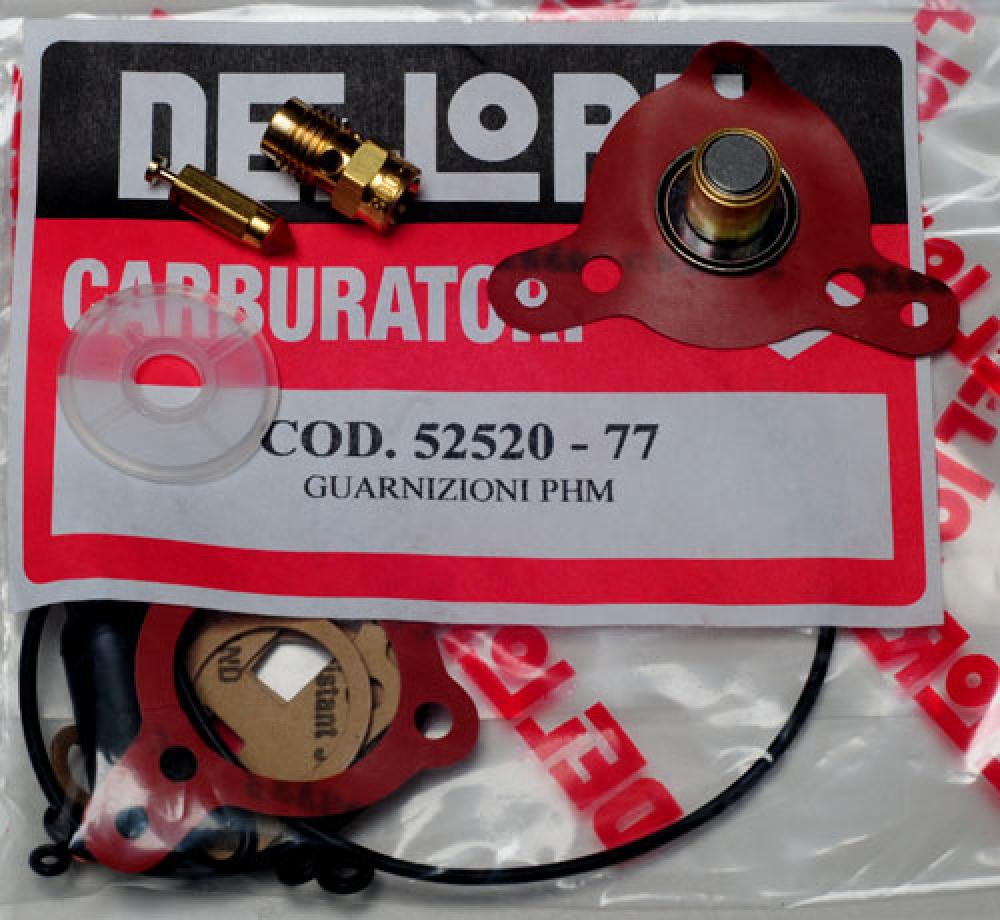

This rebuild kit includes 1 ea; PHM seal kit, #250 or #300 or #420 float needle valve, fuel banjo screen, accelerator pump diaphragm. Everything 'soft' needed inside your dellorto PHM carbie, for 1 carb. If your carb has a choke plunger on a cable, there is a rubber seal at the bottom and if dried out and not sealing up completely, you will have a flood condition. You can add that as well, or if you want to get a lever assembly on that choke...

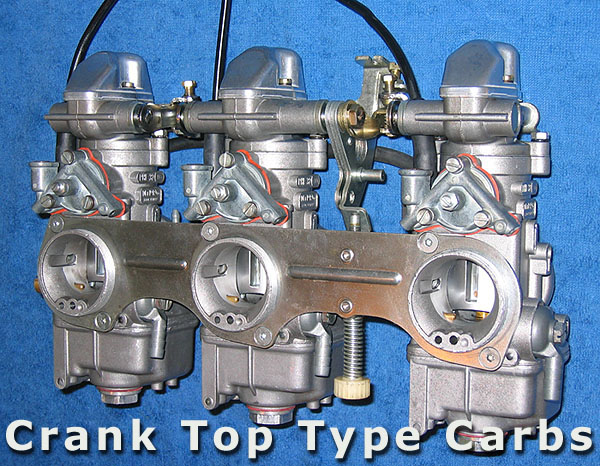

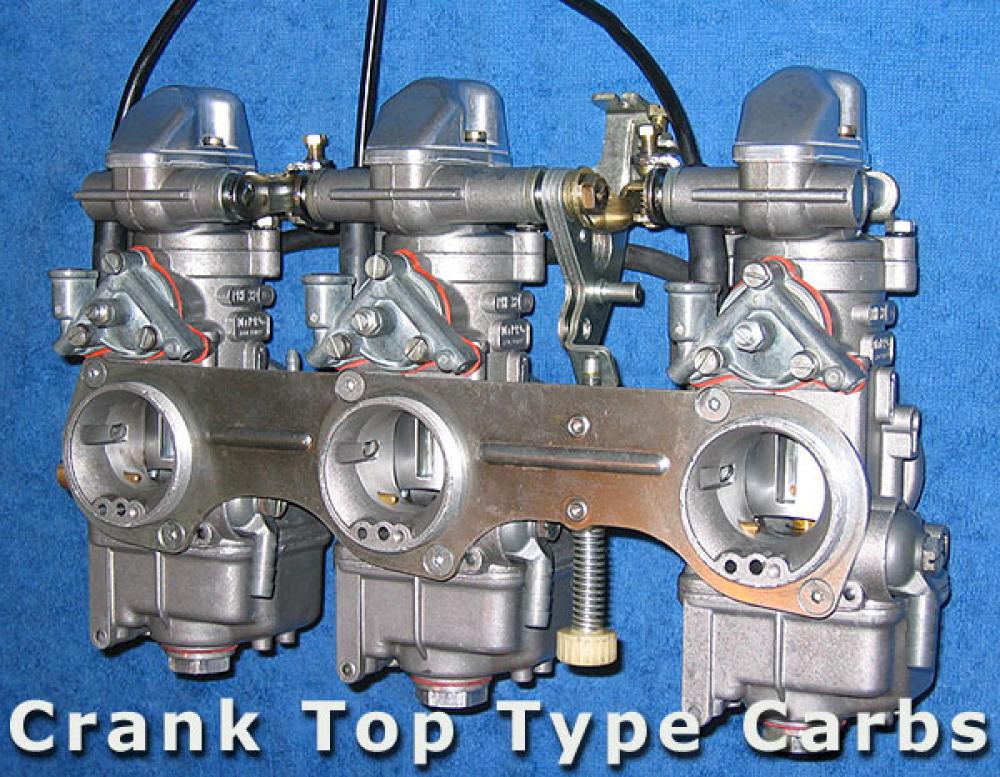

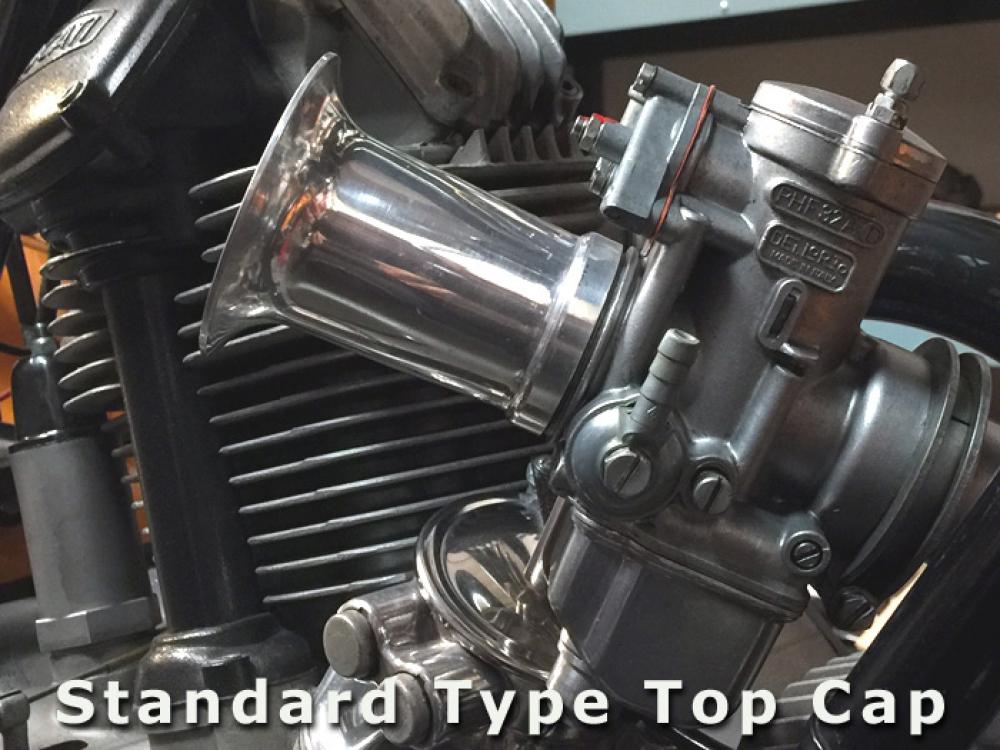

NEW: Choose which type of carb you have - either the standard top cap type with the throttle cable coming out the center of the top cap, or the crank top type as shown - the kits needed are different......
Remember, PHF carbs are 30 - 36mm choke size and PHM are 38 - 41mm choke size. And, typically, your PHM carb would have a #300 float needle valve inside but please check before ordering.
Click HERE to see an exploded parts diagram with part numbers
