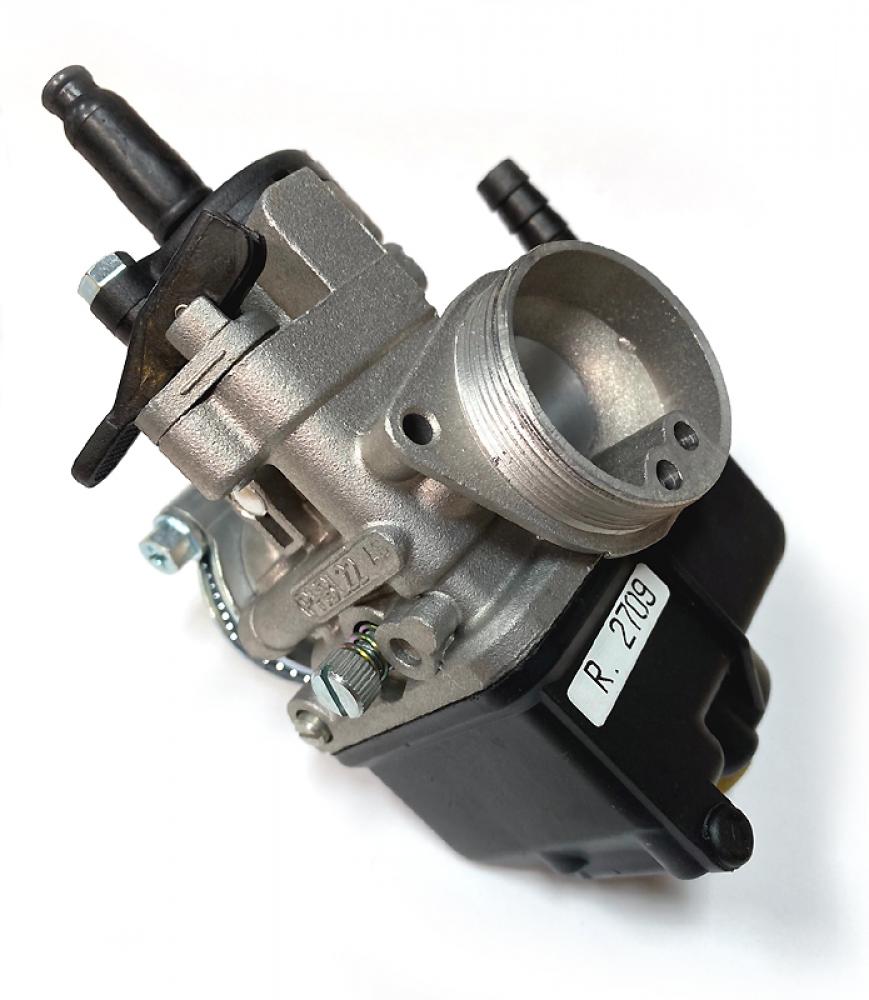

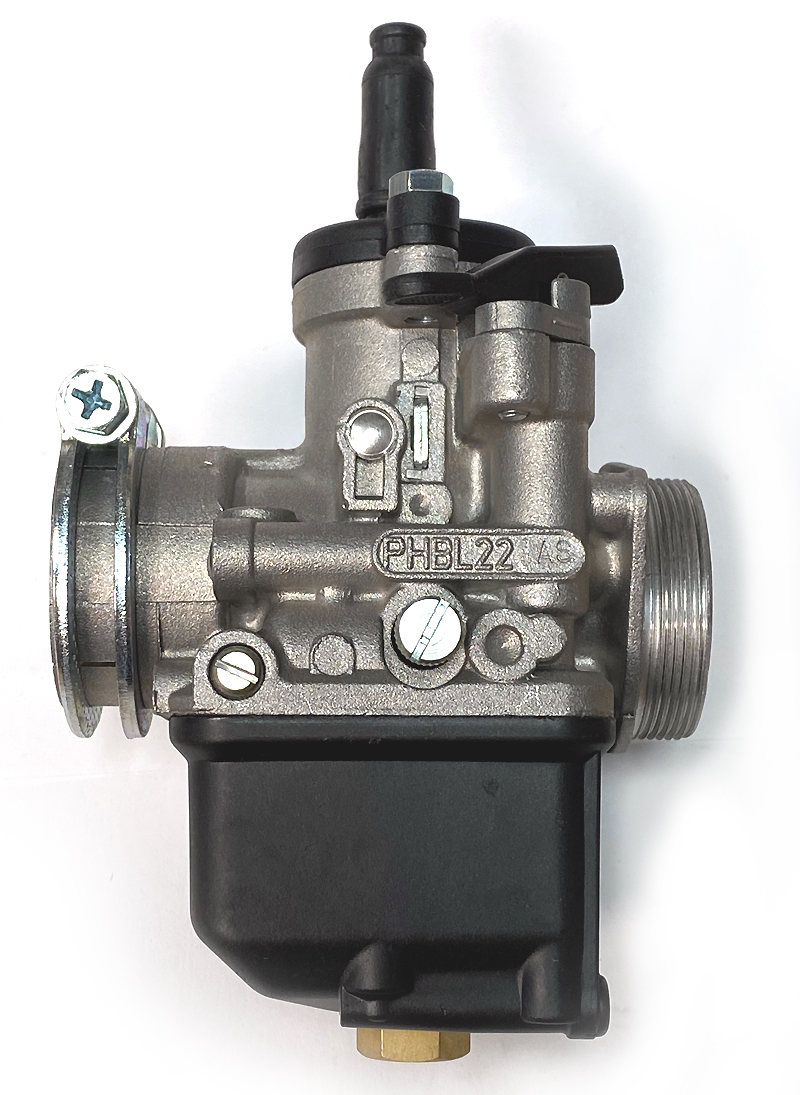

Dellorto PHBL 22 AS carb - lever type choke, clamp type mount FOUR STROKE carb. Adjusters are on the left side of the carb.
M38 x 1.25mm Threaded air intake.
Clamp type engine connection to suit 28.57 – 31.75mm stub diameter.
Lever type choke mechanism fitted, can be changed to cable operated mechanism if requested.
Standard jetting
- 40 Slide
- D24 Needle
- 268K Atomiser
- 100 Main jet
- 50 Idle jet
- 70 Choke jet
- 200 Needle valve
- 9010.1 Float – 9.5 grams
