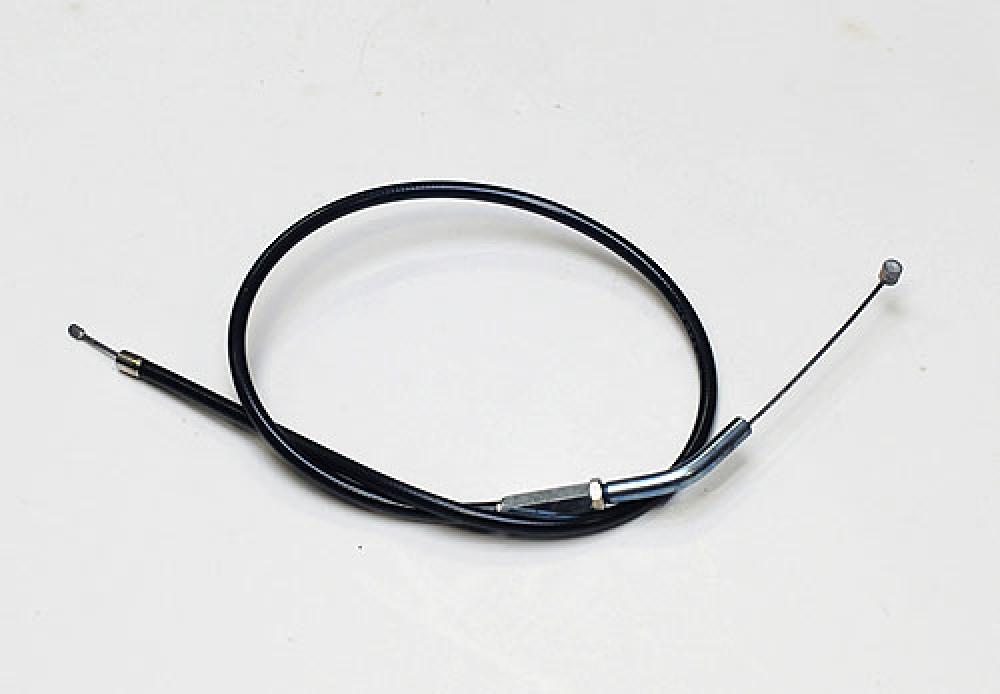

This is the top cable [goes between throttle and junction or splitter unit] on SD 900 Darmah. (PHF CARBS)
May fit other applications as well.
Cable sheath = 420mm, with adj/elbow = 483mm. Inner cable = 546mm. Free cable length = 63.
THIS WILL NOT WORK FOR YOU!!!!!
What I have worked out is for you is to buy part #801.54.954 - CLICK HERE
Also buy an adjustable throttle cable end piece part #H-T10102.031 - CLICK HERE
NOTE: If you do NOT have the needed elbow and adjuster go ahead and also buy THIS cable etc. READ BELOW
You will need to measure the FREE CABLE LENGTH of your current cable, write it down, cut your original inner cable so you can rob the elbow and adjuster and take the above cable, cut the inner cable at the barrel end, and slide your original elbow and adjuster (with the adjuster set to it's mid point) and re measure the new inner cable free cable length. It will be too short for you. So do some math and figure out how much of the new cable housing you need to cut off and do so. Put everything back together (new cable housing, old elbow and adjuster, new inner cable and lightly tighten up the set screw that holds it together. Test fit everything. If good, really tighten up the set screw on the barrel end and reinstall.
