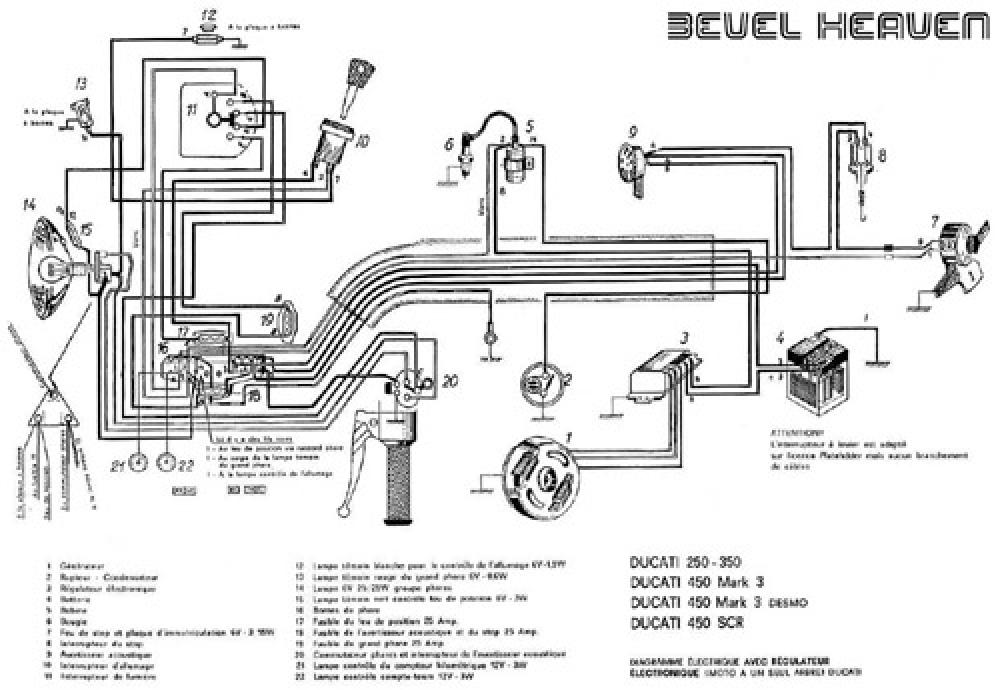

This is a wire diagram download for Ducati 250, 350, 450, Mk3 & SCR singles.
Once you complete checkout, you get an order confirmation email and it will contain a clickable link to your file. Once you click this link, please allow a moment or 3 for the .pdf file to download and it will present itself in your browser window or directly into your Adobe Acrobat viewer.
Verified Purchase
Better than nothing
Reviewed by OlyMoto on 07/26/2026
The good news: It's the only wiring diagram anywhere I can find for the 450 Mark 3.
The bad news: It's very low resolution, not in color and in Italian.
Other wiring diagrams exist for free that are in English, color and much higher resolution - and from what I can see, they are a very close match to the 450 Mark 3 but not exact.
